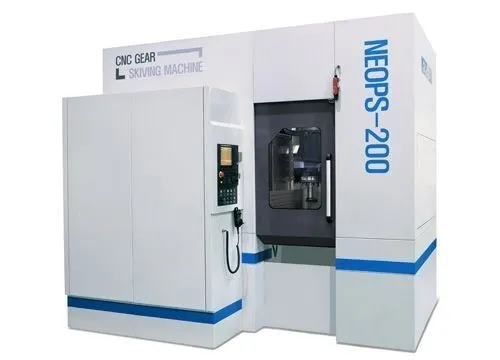

POWER SKIVING MACHINE
for the machining of Internal and External Spur or Helical gears.
• Short Machining Time
• High Machining Volume
• Moderate Tool Cost
• Manufacturing of Internal & External Gearing in One Chucking
MACHINE CAPCITY
Max. Workpiece Dia. (Internal)........800mm
Max. Workpiece Dia. (External)........950mm
Max. Workpiece Height.................470mm
Max. Helix Angle (A-axis).............±30°
Max. Pitch............................module 8.0
STOKE RANGE
Radial Travel (X-axis)...............450mm (+600mm ~ -50mm)
Tool Shift Travel....................500mm (+250mm)
Z-Axis Work Range....................495mm (150mm ~ 740mm)
Table Diameter.......................Ø1000
TOOL
Taper of Spindle Nose...............HSK #125
Max. Tool Shift Travel (Y-Axis).....500mm (±250)
MAIN SPINDLE MOTOR
B-Axis Spindle Motor................286Nm (33kw)
B-Axis Max. RPM.....................6000rpm
C-Axis Spindle Motor................800Nm (30kw)
C-Axis Max. RPM.....................3000rpm
