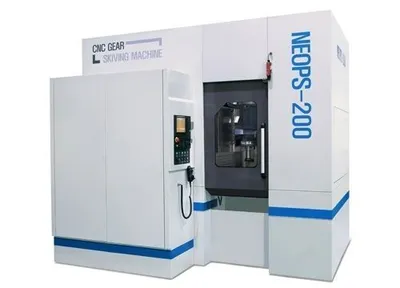

YUNIL NEOPS-200 Gear Skiving Machine
Have one to sell?
ConditionNew
New
POWER SKIVING MACHINE
for the machining of Internal and External Spur or Helical gears.
• Short Machining Time
• High Machining Volume
• Moderate Tool Cost
• Manufacturing of Internal & External Gearing in One Chucking
MACHINE CAPCITY
Max. Workpiece Dia. (Internal)........250mm
Max. Workpiece Dia. (External)........280mm
Max. Workpiece Height.................300mm
Max. Helix Angle (A-axis).............±30°
Max. Pitch............................module 4.0
STOKE RANGE
Radial Travel (X-axis)...............400mm (-350mm ~ +50mm)
Tool Shift Travel....................500mm (-250mm ~ +250mm)
Z-Axis Work Range....................330mm (190mm ~ +520mm)
Table Diameter.......................Ø280
TOOL
Taper of Spindle Nose...............HSK #100
Max. Tool Shift Travel (Y-Axis).....500mm (±250)
MAIN SPINDLE MOTOR
B-Axis Spindle Motor................286Nm (33kw)
B-Axis Max. RPM.....................6000rpm
C-Axis Spindle Motor................529Nm (31kw)
C-Axis Max. RPM.....................3000rpm
