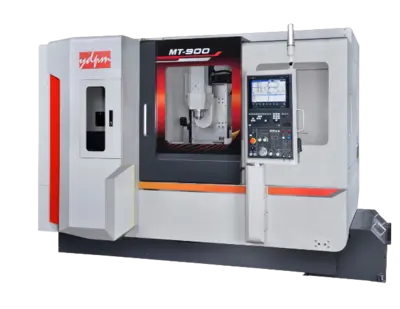

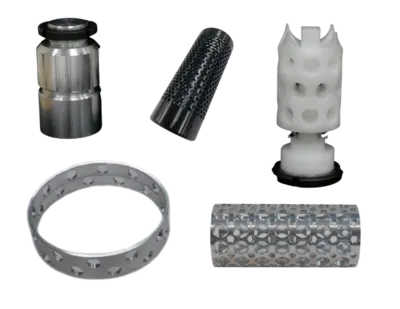

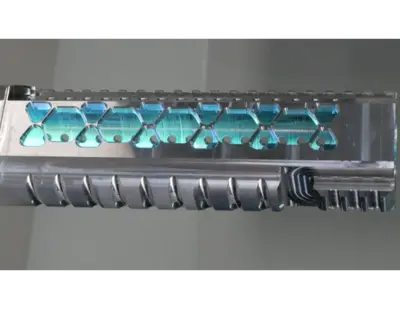

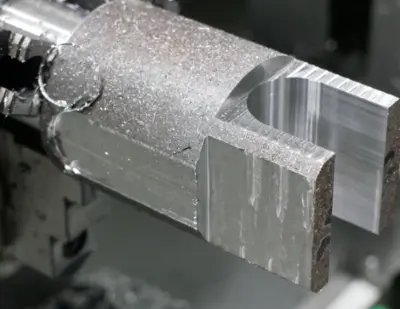

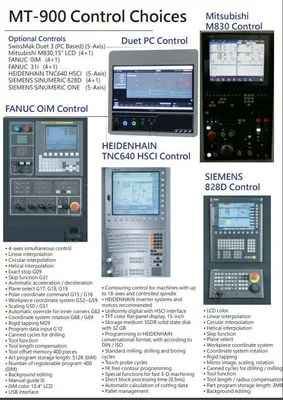

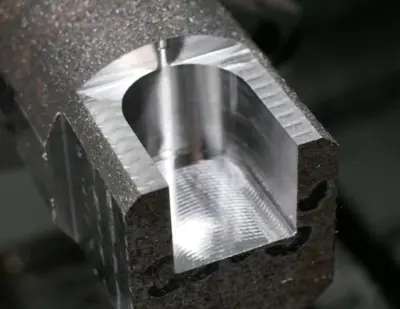

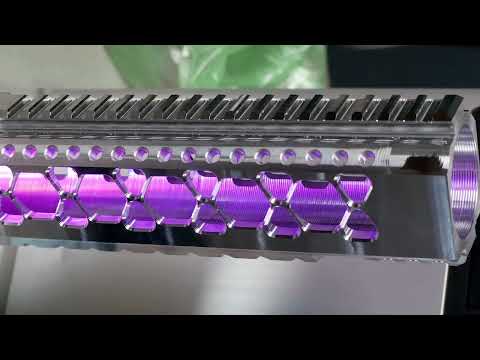

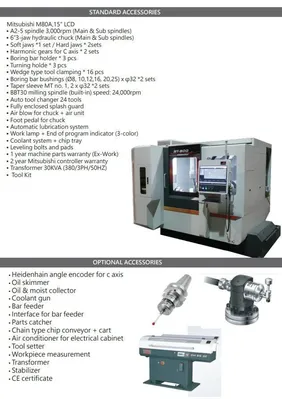

YDPM MT-900 Turn Mill Center

Capacity
Swing over bed................. Ø500mm
Max. machining dia............. Ø300mm
Max. machining length.......... 922mm

Travels
X-axis......................... 420mm
Y-axis......................... ±150mm
Z-axis......................... 900mm
B-axis......................... ±150˚
C1-axis........................ 360 (S1=3,000rpm)˚
C2-axis........................ 360 (S2=3,000rpm)˚
W-axis......................... 968mm
A-axis......................... 360 (1°)˚

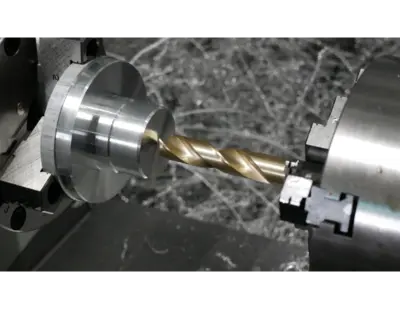

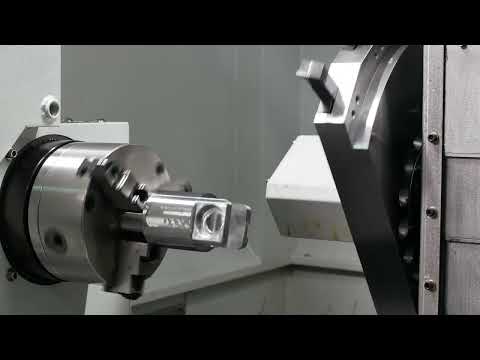

Main/Sub-Spindle
Spindle speeds................. 3,000rpm
Spindle nose................... A2-5
Spindle bore dia............... Ø56mm
Front bearing inner dia.(mm)... Ø80mm
Draw Bar Dia................... Ø45mm
Chuck diameter................. 6"mm

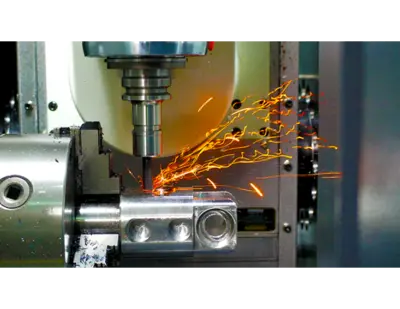

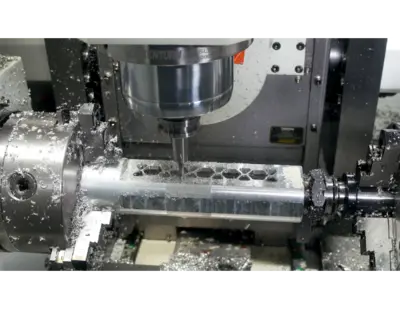

Milling Spindle
Tool shank..................... BBT-30
Spindle speeds................. 24,000rpm
Spindle bore dia............... Ø56mm
Driven motor................... IM90-L100-4P-DI
A-axis index................... 0.001˚

B-axis
Rotary angle................... ±105˚
Index.......................... 1 Arcmin
Max. speed..................... 4,000rpm
Repeatability accuracy......... ±0.1 Arcmin
Max. torque.................... 1,080Nm

C-axis
Rotary angle................... 360˚
Index.......................... 0˚
Max. speed..................... 3,000rpm
Max. torque.................... 49Nm

Tool magazine
Tool capacity.................. 24pcs
Max. tool diameter............. Φ80mm
Max. tool length............... 150mm
Max. tool weight............... 3kgs
Tool change time(T-T).......... 4.8sec

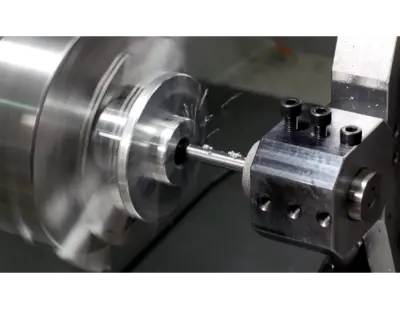

Turret (Left/Right)
Type........................... Servo
Tool capacity.................. 11pcs
Square tool shank.............. 20x20mm
Boring bar shank............... Φ32mm

Motor
Main & Sub-spindle............. 7*2kw
Milling Spindle................ 10kw
B-axis......................... 1kw
X-axis......................... 1kw
Y-axis......................... 1kw
Z-axis......................... 1kw
W-axis......................... 1kw
Tool magazine.................. 1kw
Turret(Left/Right)............. 0.75*2kw
Hydraulic oil pump............. 0.75kw
Coolant pump................... 0.85kw

Accuracy
Positioning.................... ±mm
Repeatability.................. ±mm

Power
Requirement.................... 30KVA

Machine size
Height......................... 229cm
L x W.......................... 336x228cm
Packing size................... 394x230x254cm
Net weight..................... 5,000kg
Gross weight................... 5,000kg
