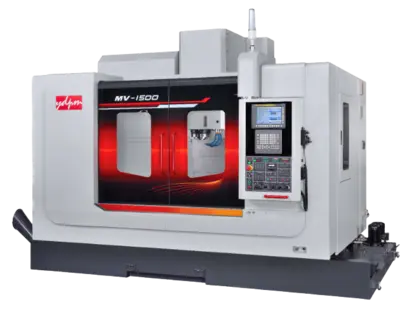

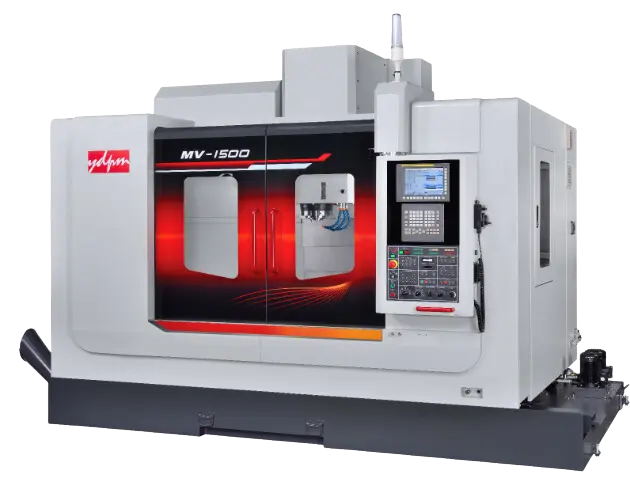

YDPM (B)MV-1500 Vertical Machining Center

Working Table Dimension........................ 1,700 x 650 mm
Working Area................................... 1,500 x 680 mm
Max. Loading Capacity.......................... 1,200 kg
Max. Travel Range of X/Y/Z-axis................ 1,500 / 680/ 680 mm
Distance from Spindle Nose to Table Surface.... 150-830 mm
Spindle Speeds................................. STD: 10,000 rpm (belt-driven)
OPT: 8,000/ 12,000 rpm
Tool Capacity.................................. STD: 24 pcs
OPT: 30 pcs
