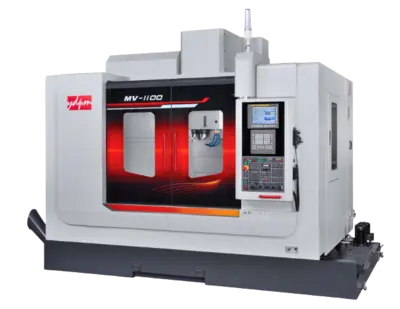

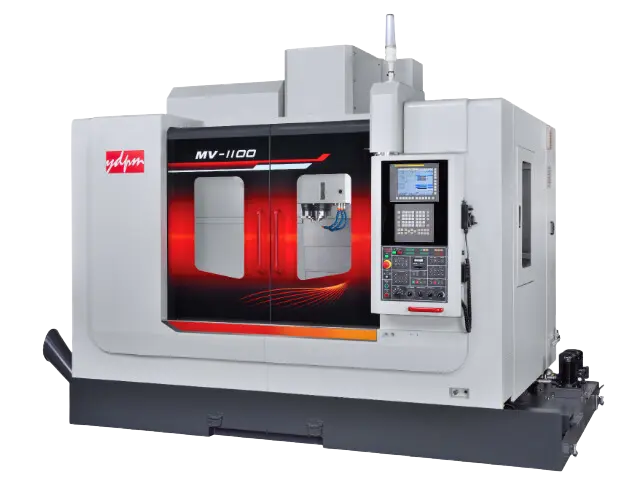

YDPM MV-1100 Vertical Machining Center

Working Table Dimension........................ 1,180 x 560 mm
Working Area................................... 1,100 x 650 mm
Max. Loading Capacity.......................... 1000 kg
Max. Travel Range of X/Y/Z-axis................ 1,100 / 650/ 620 mm
Distance from Spindle Nose to Table Surface.... 150-770 mm
Spindle Speeds................................. STD: 10,000 rpm (belt-driven)
OPT: 8,000/ 12,000/15,000 rpm
Tool Capacity.................................. STD: 24 pcs
OPT: 30 pcs
