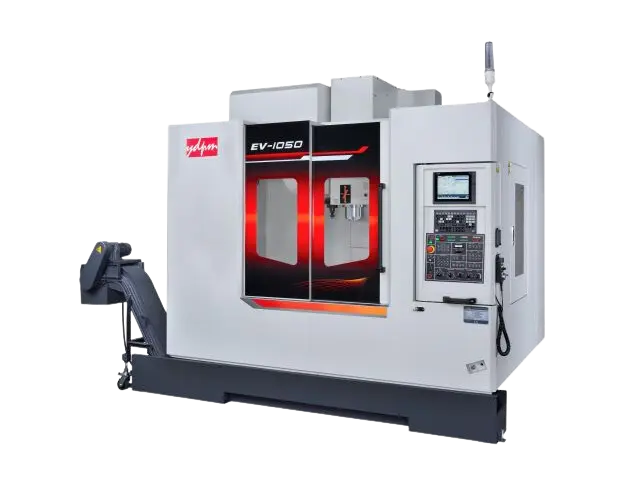

YDPM EV-1050 Vertical Machining Center

Working Table Dimension........................ 1,200 x 600 mm
Working Area.................................. 1,050 x 600 mm
Max. Loading Capacity......................... 800 kg
Max. Travel Range of X/Y/Z-axis............... 1,050 / 600/ 610 mm
Distance from Spindle Nose to Table Surface... 120-730 mm
Spindle Speeds................................ STD: 8,000 rpm (belt-driven)
OPT: 10,000/ 12,000/15,000 rpm
Tool Capacity................................. STD: 24 pcs
OPT: 30 pcs
