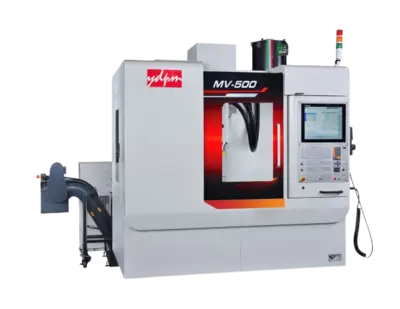

YDPM MV-500 Vertical Machining Center

Working Table Dimension........................ 600 x 500 mm
Working Area................................... 500 x 500 mm
Max. Loading Capacity.......................... 500 kg
Max. Travel Range of X/Y/Z-axis................ 500 / 500/ 500 mm
Distance from Spindle Nose to Table Surface.... 100-600 mm
Spindle Speeds................................. STD: 12,000 rpm (belt-driven)
OPT: 12,000/15,000 rpm (direct-drive)
24,000 (built-in)
Tool Capacity.................................. STD: 20 pcs (arm type)
OPT: 24 pcs
