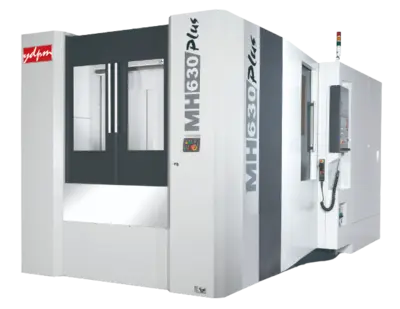

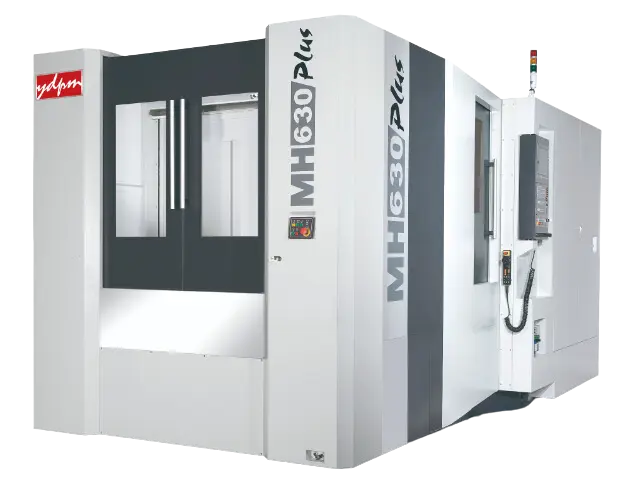

YDPM MH-630 PLUS Horizontal Machining Center

Working Table Dimensions....................... 630 x 630 mm
Max. Loading Capacity.......................... 1,200 kg
B Minimum Indexing............................. STD: 1°
OPT: 0.001°"
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø1050
Max. Height of Workpiece....................... 1300 mm
Max. Travel of X/Y/Z-axis...................... 1,050 / 900 / 1,050 mm
Distance from Spindle Nose to Table Center..... 50-1,100 mm
Spindle Taper.................................. ISO No. 50
Spindle Speeds................................. STD: 10,000 rpm (direct-drive)
OPT: 12,000 rpm (direct-drive)
15,000 rpm (direct-drive)
Tool Capacity.................................. STD: 60 pcs
OPT: 120, 180 pcs
