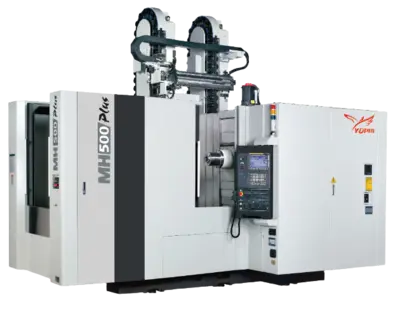

YDPM MH-500 PLUS P TYPE

Working Table Dimensions....................... 500 x 500 mm
Max. Loading Capacity.......................... 500kg
B Minimum Indexing............................. STD: 0.001°
OPT: 1°
Max. Speed of B-axis........................... STD: 50 rpm (0.001°)
OPT: 25 rpm (1°)
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø780
Max. Height of Workpiece....................... 750 mm
Max. Travel of X/Y/Z-axis...................... 800 / 650 / 800 mm
Distance from Spindle Nose to Table Center..... 150-950 mm
Spindle Taper.................................. ISO No. 50
Spindle Speeds................................. STD: 10,000 rpm (direct-drive)
OPT: 12,000 rpm (direct-drive)
15,000 rpm (direct-drive)
Tool Capacity.................................. STD: 40 pcs
OPT: 60, 120, 180 pcs
