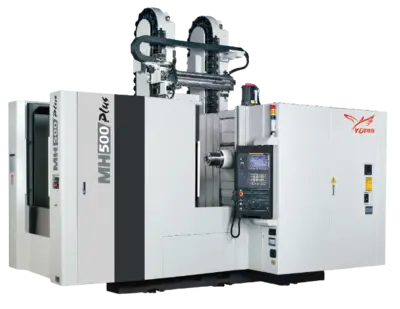

Yida's horizontal machining centers deliver exceptional precision and efficiency in manufacturing.
Explore our range of CNC horizontal machining center designed for diverse industries, offering advanced features and reliable performance.
Working Table Dimensions....................... 500 x 500 mm
Max. Loading Capacity.......................... 500kg
B Minimum Indexing............................. STD: 0.001°
OPT: 1°
Max. Speed of B-axis........................... STD: 35 rpm (0.001°)
OPT: 25 rpm (1°)
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø780
Max. Height of Workpiece....................... 750 mm
Max. Travel of X/Y/Z-axis...................... 800 / 650 / 800 mm
Distance from Spindle Nose to Table Center..... 150-950 mm
Spindle Taper.................................. ISO No. 50
Spindle Speeds................................. STD: 10,000 rpm (direct-drive)
OPT: 12,000 rpm (direct-drive)
15,000 rpm (direct-drive)
Tool Capacity.................................. STD: 40 pcs
OPT: 60, 120, 180 pcs
