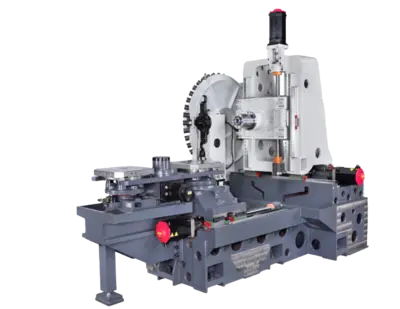

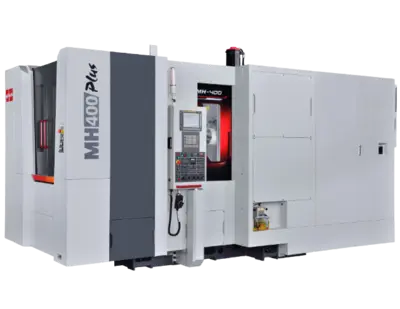

YDPM MH-400 Horizontal Machining Center
Have one to sell?
ConditionNew
New
Yida's horizontal machining centers deliver exceptional precision and efficiency in manufacturing.
Explore our range of CNC horizontal machining center designed for diverse industries, offering advanced features and reliable performance.
Working Table Dimensions....................... 400 x 400 mm
Max. Loading Capacity.......................... 400 kg
B Minimum Indexing............................. STD: 0.001°
OPT: 1°
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø550
Max. Height of Workpiece....................... 800 mm
Max. Travel of X/Y/Z-axis...................... 550 / 510 / 630 mm
Distance from Spindle Nose to Table Center..... 70-700 mm
Spindle Taper.................................. ISO No. 40
Spindle Speeds................................. STD: 12,000 rpm (belt-driven)
OPT: 15,000 rpm (belt-driven)
Tool Capacity.................................. STD: 40 pcs
OPT: 60 /120 pcs
