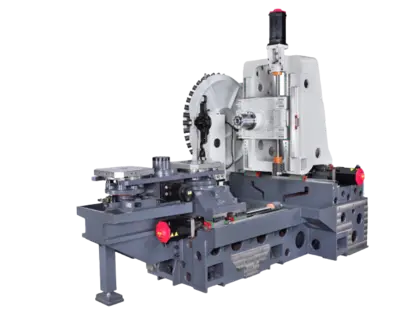

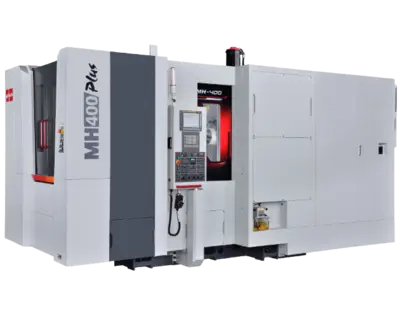

YDPM MH-400 PLUS Horizontal Machining Center

Working Table Dimensions....................... 400 x 400 mm
Max. Loading Capacity.......................... 400 kg
B Minimum Indexing............................. STD: 0.001°
OPT: 1°
Pallet Capacity................................ 2 pcs
Max. Diameter of Workpiece..................... Ø550
Max. Height of Workpiece....................... 800 mm
Max. Travel of X/Y/Z-axis...................... 550 / 510 / 630 mm
Distance from Spindle Nose to Table Center..... 70-700 mm
Spindle Taper.................................. ISO No. 40
Spindle Speeds................................. STD: 12,000 rpm (direct-drive)
OPT: 15,000 rpm (direct-drive)
Tool Capacity.................................. 40 pcs (radial type)
