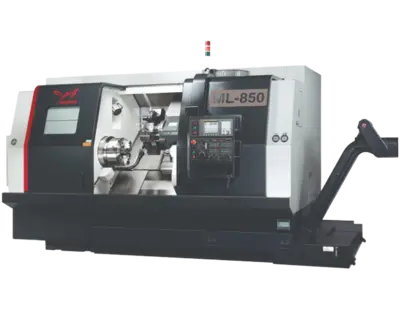

YDPM ML-850 Linear Way Turning Center

Swing Over bed................. Ø850
Swing Over Saddle.............. Ø600
Max. Machining Dia............. Ø720/ Ø600
Max. Machining Length.......... Ø720 x 150 + Ø600 x1,110
Draw Bar Dia................... STD: Ø116
OPT: Ø120
X-axis......................... 380 (360+20) mm
Z-axis......................... 1,330 mm
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD:12 pcs
Chuck Diameter................. STD: 15”
OPT: 18”
Spindle Speeds................. 40-2,000 (4-step gearbox)
Spindle Nose................... A2-11

CF-axis Function
• The CF-axis features higher rigidity and is ideal for heavy cutting application.
• The CF-axis function in combination witht the live tooling turret enable the machine to perform milling, drilling, and tapping operations with a single setup.
