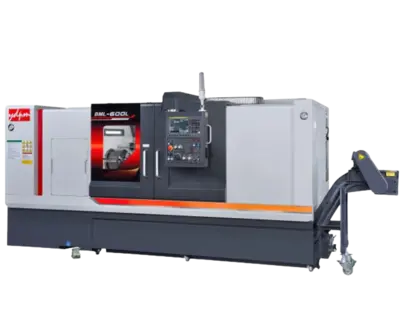

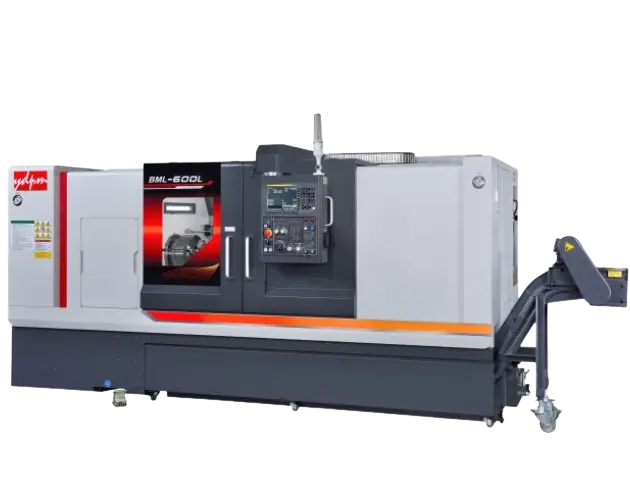

YDPM ML-600M Linear Way Turning Center

Swing Over bed................. Ø600
Swing Over Saddle.............. Ø450
Max. Machining Dia............. Ø420
Max. Machining Length.......... STD: 780 mm (10”)
OPT: 560 mm (12”)
Draw Bar Dia................... STD: Ø 75
OPT: Ø78(10"), Ø91(12")
X-axis......................... 230(210+20) mm
Z-axis......................... 830 mm (10”)
820 mm (12”)
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD: 10 pcs
OPT: 12 pcs
Chuck Diameter................. STD: 10"
OPT: 12"
Spindle Speeds................. STD: 50-3,500 (A2-8, 75mm, 10”)
OPT: 50-3,000 (A2-8, 78mm, 10”)
50-2,500 (A2-8, 91mm, 12”)
Spindle Nose................... A2-8

CS-Axis Function
• The CS-axis function in combination with the live tooling turret enable the machine to perform milling, drilling, and tapping operations with only a single setup.
• CS-axis is equipped with a rotary encoder for high orientating accuracy.
