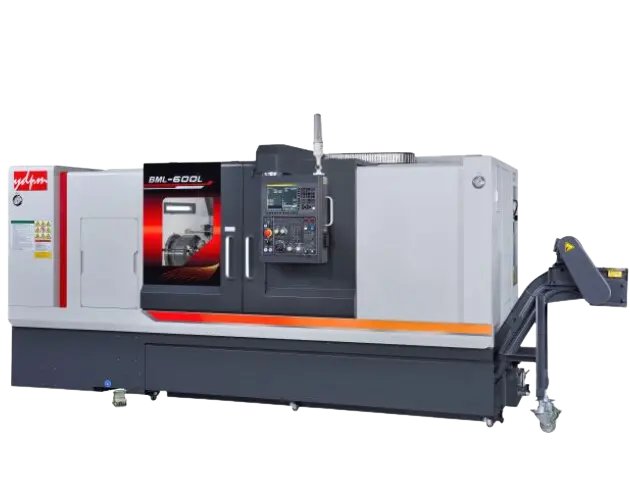

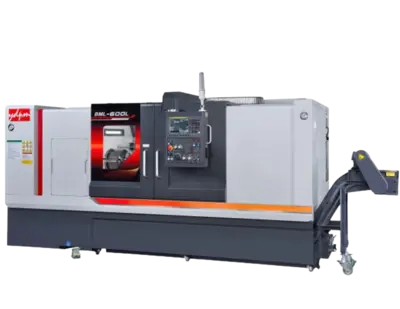

YDPM ML-600S Linear Way Turning Center

Swing Over bed................. Ø600
Swing Over Saddle.............. Ø450
Max. Machining Dia............. Ø420
Max. Machining Length.......... STD: 560 mm (8”)
OPT: 540 mm (10”)
Draw Bar Dia................... STD: Ø 52
OPT: Ø 75
X-axis......................... 230(210+20) mm
Z-axis......................... 600 mm (8”)
590 mm (10”)
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD: 10 pcs
OPT: 12 pcs
Chuck Diameter................. STD: 8"
OPT: 10"
Spindle Speeds................. STD: 50-4,500 (A2-6)
OPT: 50-3,500 (A2-8)
Spindle Nose................... STD: A2-6
OPT: A2-8

CS-Axis Function
• The CS-axis function in combination with the live tooling turret enable the machine to perform milling, drilling, and tapping operations with only a single setup.
• CS-axis is equipped with a rotary encoder for high orientating accuracy.
