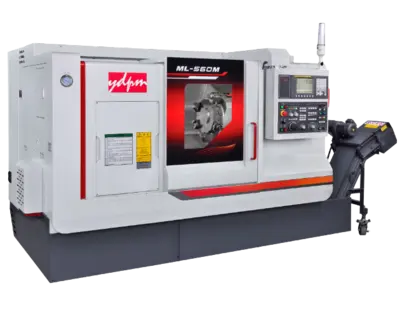

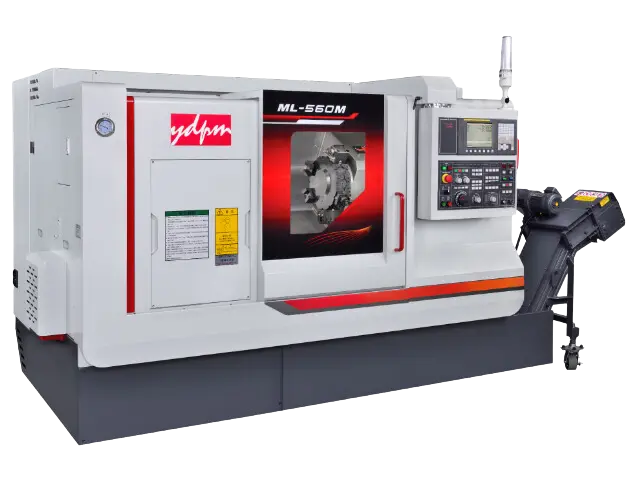

YDPM ML-560MY Linear Way Turning Center
Have one to sell?
ConditionNew
New
• Finite Element Analysis (FEA)
• Highly rigid headstock
• Automatic tailstock
• Linear guideways
• High precision, high speed ballscrews
Swing Over bed................. Ø700
Swing Over Saddle.............. Ø560
Max. Machining Dia............. Ø320
Max. Machining Length.......... 530 mm
Draw Bar Dia................... Ø52
X-axis......................... 190(160+30) mm
Z-axis......................... 600 mm
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. 12 pcs
Chuck Diameter................. 8"
Spindle Speeds................. 0-4,500
Spindle Nose................... A2-6
