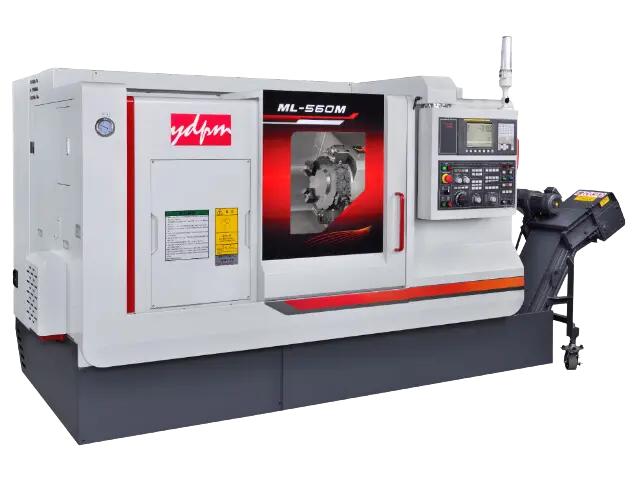

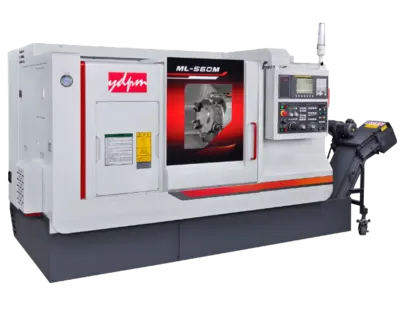

YDPM ML-560M Linear Way Turning Center

Swing Over bed................. Ø560
Swing Over Saddle.............. Ø420
Max. Machining Dia............. Ø320
Max. Machining Length.......... 570 mm
Draw Bar Dia................... STD: Ø52
OPT: Ø66, Ø45
X-axis......................... 190(160+30) mm
Z-axis......................... 610 mm
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD: 10 pcs
OPT: 8, 12 pcs
Chuck Diameter................. STD: 8"
OPT: 6"
Spindle Speeds................. STD: 4,500 (A2-6)
OPT: 6,000 (A2-5)
Spindle Nose................... STD: A2-6
OPT: A2-5
