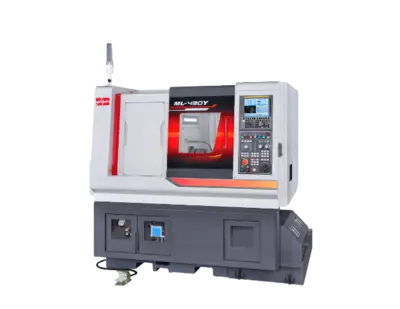

YDPM ML-430 Gang Type Turning Center
Have one to sell?
ConditionNew
New
• Flat bed design, compact floor space, and multi-tasking production
• X/Y/Z axis linear guid way with high feed rate and low abrasion
• Varied turret and gang tooling selection- gang tooling system and turret
• Enhancement of varied parts with Y-axis tooling systemn design
Swing Over bed................. Ø430
Swing Over Saddle.............. Ø160
Max. Machining Dia............. Ø430
Max. Machining Length.......... 240 mm
Draw Bar Diameter.............. Ø45
X-axis......................... 350 mm
Z-axis......................... 320 mm
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD:6 pcs
OPT:8 pcs
Chuck Diameter................. 6”
Spindle Speeds................. 6,000 pm
Spindle Nose................... A2-5
Y-Axis Function
• The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
• The excellent use of a Y-axis saves money, time, floor space, manpowerand fixture cost.
• Full cycle machining reduces loss of accuracy.
