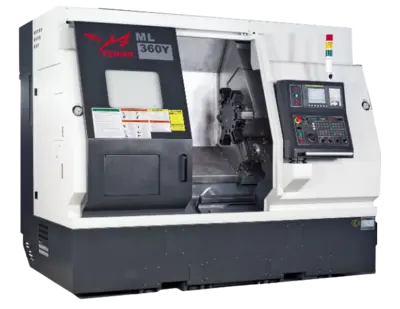

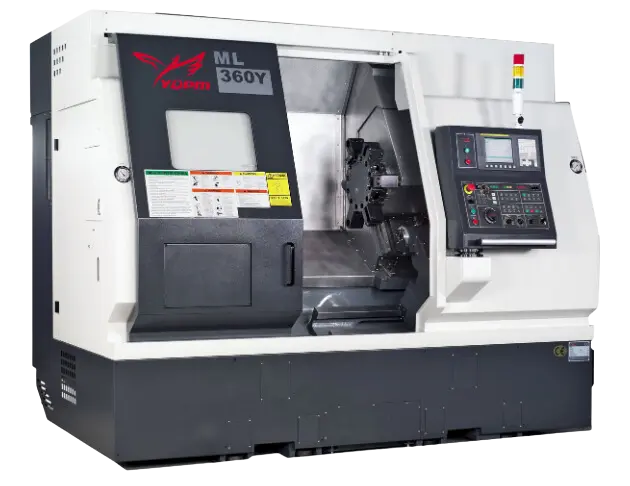

YDPM ML-360 Linear Way Turning Center

Swing Over bed................. Ø600
Swing Over Saddle.............. Ø400
Max. Machining Dia............. Ø360
Max. Machining Length.......... STD: 470 mm (A2-6)
OPT: 460 mm (A2-8)
Draw Bar Dia................... STD: Ø52
OPT: Ø75
X-axis......................... 215 (180+35) mm
Z-axis......................... 8”: 500 mm
10”: 500 mm
C-axis (Optional).............. 360˚ (0.001˚)
Tool Capacity.................. STD:12 pcs
OPT:10 pcs
Chuck Diameter................. STD: 8”
OPT: 10”
Spindle Speeds................. STD: 50-4,500 (A2-6) rpm
OPT: 50-3,500 (A2-8) rpm
Spindle Nose................... STD:A2-6
OPT:A2-8

Y-Axis Function
• The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
• The excellent use of a Y-axis saves money, time, floor space, manpower and fixture cost.
• Full cycle machining reduces loss of accuracy.
