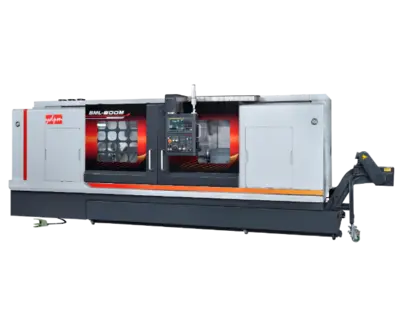

YDPM ML-800L Linear Way Lathe

Swing Over bed................. Ø800
Swing Over Saddle.............. Ø600
Max. Machining Dia............. Ø620
Max. Machining Length.......... 3,000 mm
Draw Bar Dia................... STD: Ø120
OPT: Ø91 / Ø142 / Ø166.5
X-axis......................... 340(310+30) mm
Z-axis......................... 3,150 mm
C-axis (Optional).............. -
Tool Capacity.................. 12 pcs
Chuck Diameter................. STD: 15”
OPT: 12”/15”Oversize/18”"
Spindle Speeds................. STD: 2,000 rpm (15”)
OPT: 2,500 rpm (12”)/1200 rpm (15”)/1,000rpm (18”)"
Spindle Nose................... STD: A2-11
OPT: A2-8/A2-15
