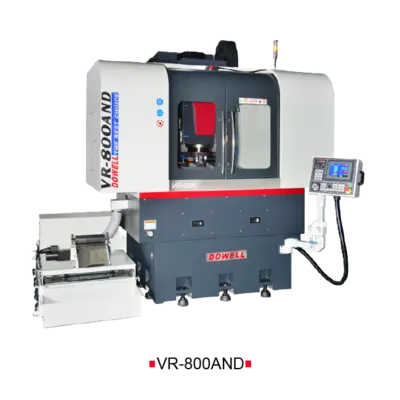

DOWELL VR-800AND Vertical Rotary Surface Grinding Machine
Have one to sell?
ConditionNew
New
Features
• Meehanite Class FC30 casting with high rigid and wear resistance guide way insure machine permanent accuracy.
• Spindle is designed for providing excellent stability and heavy duty grinding.
• V3 grade spindle motor with good waterproof and moisture resistant design.
• Vertical feeding guide way use high rigid roller linear guideway (block x 6) provide smooth movement and rigidity.
• Work table with fine pitch magnetic chuck has powerful attractive force and specalized for small workpiece.
Rotary magnetic chuck dia.............................. 800mm
Max. grinding height................................... 400mm
Distance of table surface to spindle surface center.... 260mm
Rotary magnetic chuck speed............................ 10~20r.p.m.
Rotary magnetic chuck horse power...................... 4.5kw
Spindle speed.......................................... 30HP
Spindle speed (50/60Hz)................................ 1450/1750r.p.m.
Auto down feed horse power............................. 2kw
Vertical hand wheel down feed per revolution........... "x1, x5, x10(MPG)/0.1, 0.5, 1mm"
Vertical hand wheel down feed per graduation........... "x1, x5, x10(MPG)/0.001, 0.005, 0.01mm"
Wheel size (dia x width x bore)........................ (80~90)x30x140mmx8pcs
Net weight / gross weight (approx.).................... 8000/9000kg
Packing size (LxWxH)................................... 3600x2600x2960cm
※ The manufacturer reserves right to modify the design, specification mechanisms etc. without notice.
