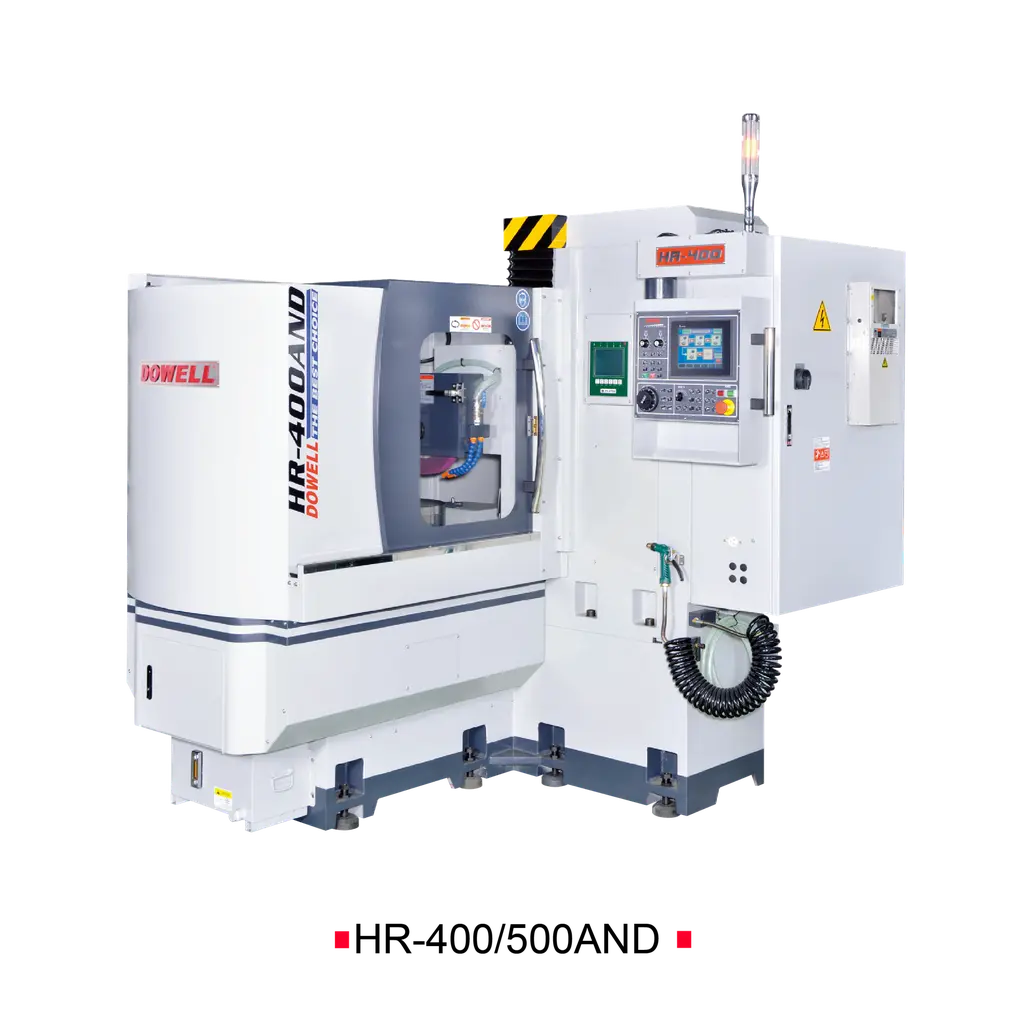

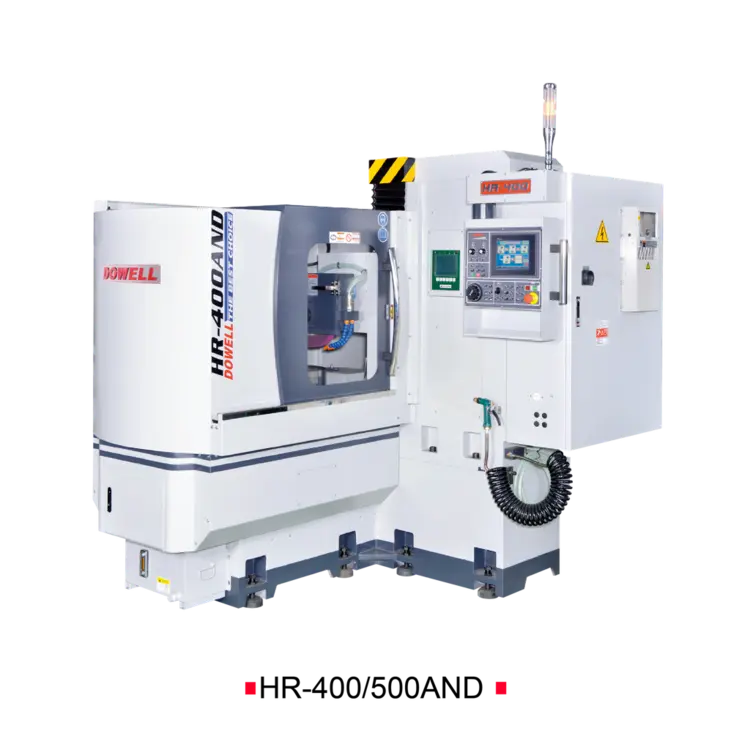

DOWELL HR-400 Horizontal Rotary Surface Grinder
Have one to sell?
ConditionNew
New
Features
• Meehanite Class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
• Spindle lateral design creates stability during heavy cutting.
• Spindle V3 Grade motor provides good water proofing resisting moisture.
• Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding whilst maintaining high stiffness.
• Small workpiece suction is accomplished by fine electrical magnetic chuck.
Rotary magnetic chuck dia.............................. 400mm
Max. grinding height................................... 225mm
Distance of table surface to spindle surface center.... 450mm
Rotary magnetic chuck speed............................ 20~250r.p.m.
Rotary magnetic chuck horse power...................... 1.5kw
Spindle speed.......................................... 5HP
Spindle speed (50/60Hz)................................ 1450/1750r.p.m.
Auto down feed horse power............................. Servo Motor 500w
Vertical hand wheel down feed per revolution........... x1, x5, x10(MPG)/0.1, 0.5, 1mm
Vertical hand wheel down feed per graduation........... "x1, x5, x10(MPG)/
0.001, 0.005, 0.01mm"
Wheel size (dia x width x bore)........................ 355x38x127mm
Net weight / gross weight (approx.).................... 3200/3800kg
Packing size (LxWxH)................................... 2400x1900x2100mm
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.
