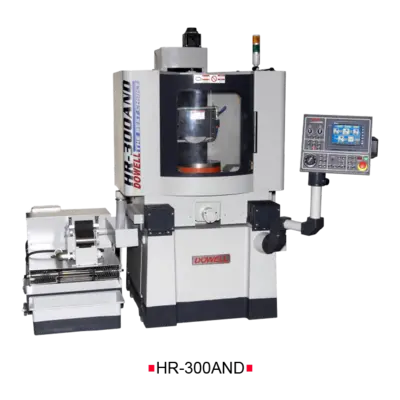

DOWELL HR-300 Horizontal Rotary Surface Grinder
Have one to sell?
ConditionNew
New
Features
• Precision horizontal grinding machine.
• Surface finishing go mirror class.
• Automatic Trim Compensation.
• On line spindle vibration monitor.
• Machine base fully supported design creating high rigidity structure.
• Y,Z axis and rotary driven by AC servo motor.
Rotary magnetic chuck dia.............................. 300mm
Max. grinding radius................................... 175mm
Distance of table surface to spindle surface center.... 250mm
Rotary magnetic chuck speed............................ 20~250r.p.m.
Rotary magnetic chuck horse power...................... 400W
Spindle motor.......................................... 2HP
Spindle speed (50/60Hz)................................ 3000/3600r.p.m.
Auto down feed horse power............................. Servo Motor 500W
Vertical hand wheel downfeed per revolution............ x1, x5, x10(MPG)/0.1, 0.5, 1mm
Vertical hand wheel downfeed per graduation............ x1, x5, x10(MPG)/0.001, 0.005, 0.01mm
Wheel size (dia x width x bore)........................ 180x13x31.75mm
Net weight / gross weight (approx.).................... 1600/1800kg
Packing size (LxWxH)(mm)............................... 2050x1450x2020mm
※ The manufacturer reserves right to modify the design, specification mechanisms etc. without notice.
