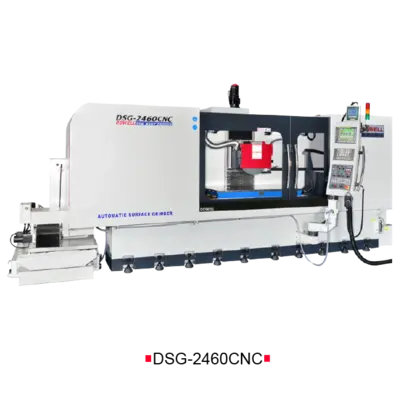

DOWELL DSG-2460 NC/CNC High Precision Grinder
Have one to sell?
ConditionNew
New
Features
• Machine structure is manufactured from high quality Meehanite class FC cast iron.
• Machine base fully supported design creating high rigidity structure.
• 3 axis uses high precision ballscrew AC servo motor drive.
• Y 、Z axis uses high stiffness and rigidity linear roller guideways.
• High precision spindle.
• Closure type water-proof guard.
General Capacity
Table size (lxw)............................... 1500x600mm
Max.grinding length............................ 650/800mm(opt.)
Longitudinal Movement
Hydraulic feed (table speed) approx............ 5~25m/min
Servo motor feed (table speed) approx.(opt.)... 1~15m/min
Belt feed (table speed) approx................. 1~25m/min
Cross Movement
Increment cross feed........................... 1000mm/min
M.P.G.......................................... "X1:0.001mm
X5:0.005mm
X10:0.01mm"
Vertical Down feed
Increment cross feed........................... 1000mm/min
M.P.G.......................................... "X1:0.001mm
X5:0.005mm
X10:0.01mm"
Grinding Wheel
Wheel size (dia x width x bore)................ 405x50x127mm
Spindle speed (50/60HZ)........................ 1450/1750r.p.m.
Motor
Spindle drive motor............................ 20HP
Hydraulic motor................................ 7.5HP
Y servo motor.................................. 1KW
Z servo motor.................................. 1KW
X servo motor(opt.)............................ 3.5KW
Weight
Net weight / gross weight (approx.)............ 8500kg
Packing Size
Length × width × height........................ 5500x2300x2350mm
※ The manufacturer reserves right to modify the design, specification mechanisms etc. without notice.
