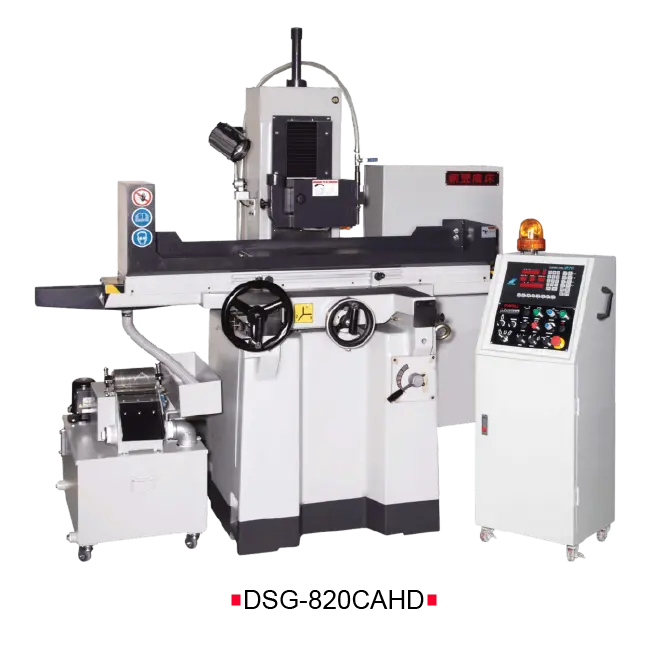

DOWELL DSG-1632CAHD Auto Feed Surface Grinder
Have one to sell?
ConditionNew
New
Features
• Machine structure is manufactured from high quality Meehanite class FC cast iron.
• Direct type spindle use high precision P4 bearing and go with V3 grade spindle motor provide excellent rigidity and stability.
• Saddle guide way use double V designed, coated with Turcite-B and hand-scraped provide smooth movement.
• Auto lubrication system use pump for forced cycle lubrication.
• Plunge and surface grinding mode are standard.
• Vertical feed driven by step & AC servo motor.
• Feeding speed selection: JOG/slow/Rapid.
General Capacity
Table size (lxw)............................... 400x800mm
Max.grinding length............................ 850mm
Max.grinding width............................. 450mm
Distance from table surface to spindle center.. 600/800mm(Opt.)
Standard mag. Chuck size....................... 400x800mm
Longitudinal Movement
Manual travel.................................. 900mm
Hydraulic traverse............................. 850mm
Hydraulic feed (table speed) approx............ 3~25m/min
Cross Movement
Manual travel.................................. 450mm
Auto cross feed................................ 420mm
Hand feed per revolution....................... 5mm
Hand feed per graduation....................... 0.02mm
Continuous cross feed (approx.)50/60HZ......... 1100mm/min
Increment cross feed........................... 1~20mm/min
Vertical Down feed
Rapid traverse (approx.)....................... 350mm/min
Slow traverse (approx.) mm/min - 29............ 29mm/min
Hand feed per revolution....................... 1mm
Hand feed per graduation....................... 0.005mm
Auto down feed rate............................ 0.001~0.099mm
Jog............................................ 0.001mm
Pre-set spark out times........................ 0~9(passes)
Manual pulse generator......................... x1, x5, x10
Grinding Wheel
Wheel size (dia x width x bore)................ 355x38x127mm
Spindle speed (50/60HZ)........................ 1450/1750r.p.m.
Motor
Spindle drive motor............................ 7.5/10HP(Opt.)
Hydraulic motor................................ 2HP
Cross feed motor............................... 40W
Rapid hand elevation servo motor............... 400W
Weight
Net weight / gross weight (approx.)............ 3000/3450kg
Packing Size
Length × width × height........................ 2800x2100x2280mm
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.
• Grinding wheel
• Wheel flange with extractor
• Balancing arbor
• Diamond dresser and base
• Working lamp
• Leveling plate
• Leveling screw & nut
• Tool box with tools
• Operation manual & Inspection report
• Touch-up paint
