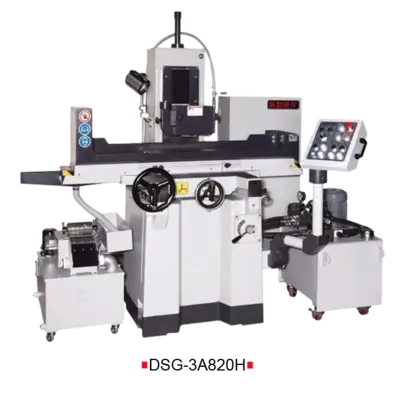

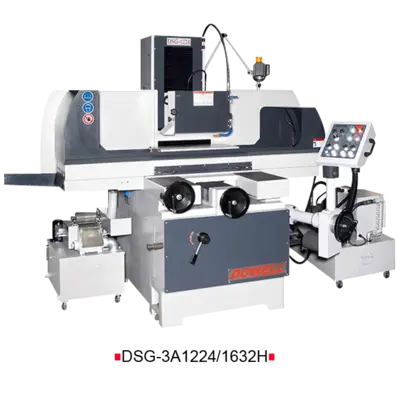

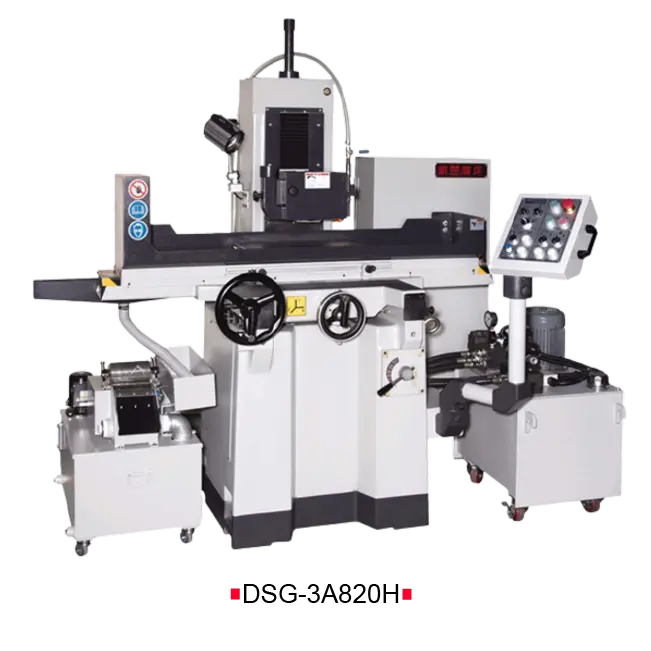

DOWELL DSG-3A1632H Semi-Auto Surface Grinder
Have one to sell?
ConditionNew
New
Features
• Rigid CONSTRUCTION：The base, saddle, heavily ribbed column, table and wheel head are "MEEHANINTE" casting which are produced by our related corporation and through internal stress elimination (annealing and seasoning), which assures the highest accuracy and long life.
• TURCITE-B slide way：All slide ways are coated with TURCITE-B and then hand scraped for precision operation and longevity.
• SPINDLE：The V3 graded motor directly coupled to the cartridge style spindle, which is supported by P4 super precision preloaded bearing with sealed lubrication to ensure the run out within 2* and high durability.
• AUTO LUBRICATION SYSTEM：The automatic lubrication system is furnished as standard to provide ample lubrication on all slide ways and leadscrews whenever the spindle is under the power, thus assuring smooth table movement.
General Capacity
Table size (lxw)....................................... 400x800mm
Max.grinding length.................................... 850mm
Max.grinding width..................................... 450mm
Distance from table surface to spindle center.......... 600/800mm(Opt.)
Standard mag. Chuck size............................... 400x800mm
Longitudinal Movement
Manual travel.......................................... 900mm
Hydraulic traverse..................................... 850mm
Hydraulic feed (table speed) approx.................... 3~25m/min
Cross Movement
Manual travel.......................................... 450mm
Auto cross feed........................................ 420mm
Hand feed per revolution............................... 5mm
Hand feed per graduation............................... 0.02mm
Continuous cross feed (approx.)50/60HZ................. 1100mm/min
Increment cross feed................................... 1~20mm/min
Vertical Down feed
Rapid traverse (approx.)............................... 350mm/min
Slow traverse (approx.) mm/min - 29.................... 29mm/min
Hand feed per revolution............................... 1mm
Hand feed per graduation............................... 0.005mm
Auto down feed rate.................................... 0.001~0.099mm
Jog.................................................... 0.001mm
Pre-set spark out times................................ 0~9(passes)

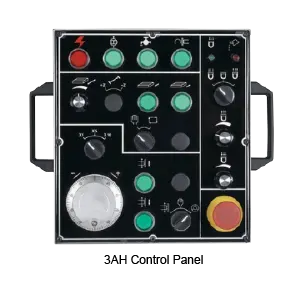

Manual pulse generator................................. x1, x5, x10
Grinding Wheel
Wheel size (dia x width x bore)........................ 355x38x127mm
Spindle speed (50/60HZ)................................ 1450/1750r.p.m.
Motor
Spindle drive motor.................................... 7.5/10HP(Opt.)
Hydraulic motor........................................ 2HP
Cross feed motor....................................... 40W
Rapid hand elevation servo motor....................... 400W
Weight
Net weight / gross weight (approx.).................... 3000/3450kg
Packing Size
Length × width × height................................ 2800x2100x2280
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.
• Grinding wheel
• Wheel flange with extractor
• balancing arbor
• Diamond dresser and base
• Working lamp
• Leveling plate
• Leveling screw & nut
• Tool box with tools
• Operation manual & Inspection report
• Touch-up paint
