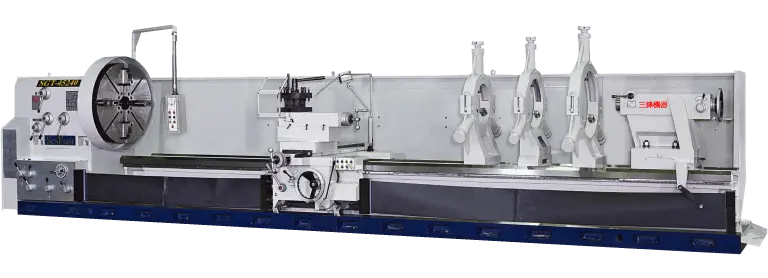

SFM SGT-45 Heavy Duty Precision Lathe

Capacity
Swing Over Bed 1160 mm (45")
Swing Over Cross Slide 850 mm (33")
Swing in Gap 1700 mm (67")
Width of Gap 560 mm (22")
Distance Between Centers 1500 mm (60") 2000 mm (80") 3000 mm (120")

Headstock
Spindle Bore 153 mm(6") / *230 mm(9"), *310 mm(12") (Opt.)
Spindle Nose A2-11 / *A2-15, *A2-20 (Opt.)
Number of Spindle Speeds 12 Changes
Taper of Center M.T. No. 6
Range of Spindle Speeds 4-400 RPM / *3-300 RPM (Opt.)

Feeds & Threads Cutting
Leadscrew 57 mm (2-1/4")
Pitch of Leadscrew 2 T.P.I / *P12mm (Opt.)
Inch Threads 1/4-30 TPI (70 kinds)
Metric Threads 1-120 mm (62 kinds)
D.P Threads 1-120 D.P. (70 kinds)
M.P Threads 0.25-30 M.P. (53 kinds)
Longitudinal Feeds 0.085-10.08 mm/rev (0.004-0.40 in/rev)
Cross Feeds 0.042-5.04 mm/rev (0.002-0.20 in/rev)

Carriage
Cross Slide Travel 635 mm (25")
Compound Rest Travel 420 mm (16-1/2")
Rapid Travel Speed to Carriage 2000 mm/min (80"/min)

Tailstock
Quill Diameter 125 mm (4-7/8")
Quill Travel 340 mm (13-3/8")
Taper of Quill Center M.T. No.6

Bed One-piece machine bed which is most suitable for heavy duty machining
Width of Bed 665 mm (26")
Main Motor 20HP / * 25HP (Opt.)
Rapid Travel Motor 1HP
Weight (Approx) 8200 kg, 8800 kg, 10000 kg

Packing Size
(Lx Wx H) 160"x80"x80" 180"x80"x80" 220"x80"x80"
