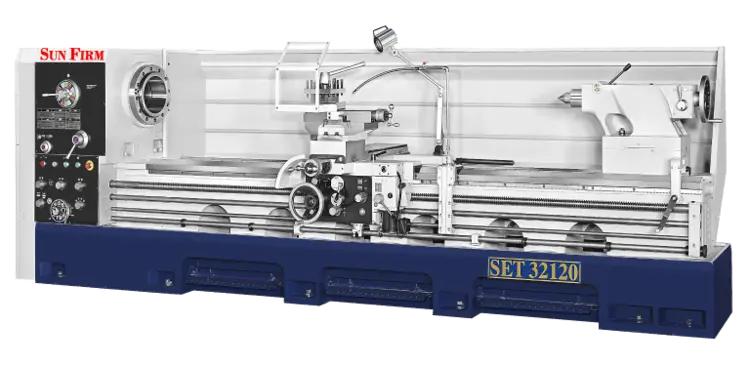

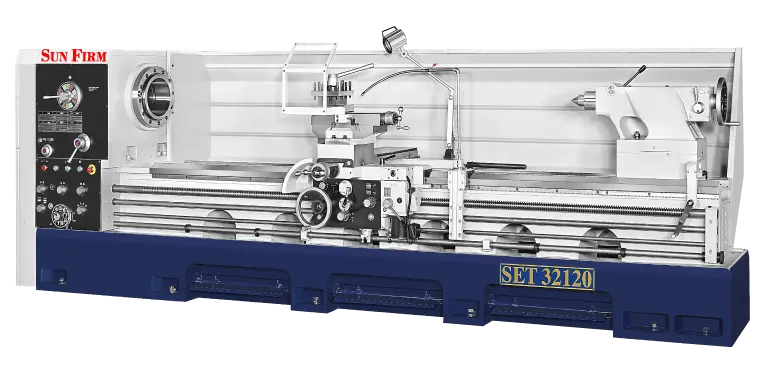

SET-Heavy Duty Series

Capacity
Swing Over Bed 930 mm (36")
Swing Over Cross Slide 700 mm (27-1/2")
Swing in Gap 1200 mm (47")
Width of Gap 225 mm (8-7/8")
Distance Between Centers 7000 mm (275")

Headstock
Spindle Bore 105 mm / * 153 mm, 230 mm (OPT)
Spindle Nose A2-8 / *A2-11, D1-11, A2-15 (OPT)
Taper of Center M.T. No. 5 / * M.T. No. 6 (OPT)
Range of Spindle Speeds 15-1000 /*10-700 RPM (OPT)
Number of Spindle Speeds 12 Changes

Feeds & Threads Cutting
Longitudinal Feeds 0.05-0.7 mm/rev
Cross Feeds 0.025-0.35 mm/rev
Inch Threads 2-28 Thread/in, (D.P. 4-56)
Metric Threads 0.8-14 mm / Thread, (M.P. 0.5-7)
Leadscrew Ø 45 mm (1-3/4") x 2 T.P.I. / * P 12 mm (OPT)

Carriage
Cross Slide Travel 425 mm (16-1/2")
Compound Rest Travel 250 mm (10")

Tailstock
Quill Diameter 95 mm (3-3/4") / * 105 mm (4-1/8") (OPT)
Quill Travel 230 mm (9")
Taper of Quill Center M.T. No.5 / * M.T. No.6 (OPT)

Bed One-piece machine bed which is most suitable for heavy duty machining
Width of Bed 460 mm (18-1/8")
Length of Bed 8550 mm (338")
Main Motor 15HPx4P / * 20HPx4P (OPT)
Weight (Approx) 9800 kg
Packing Size(L x W x H) 9000 x 1600 x 1900 mm
