MH-High Speed Series

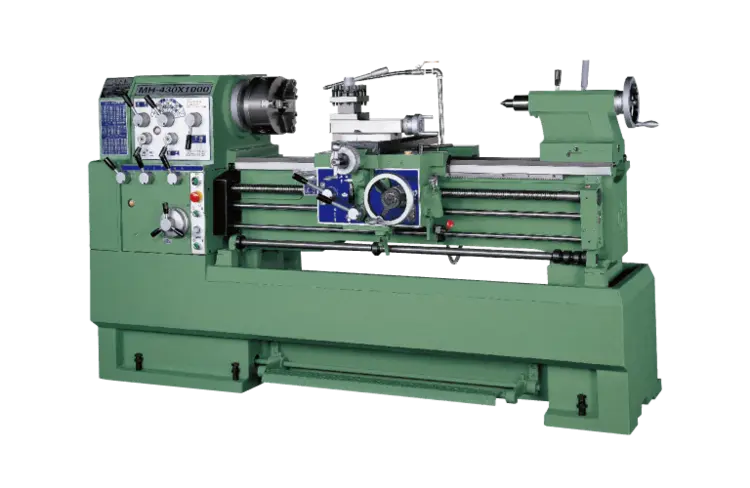

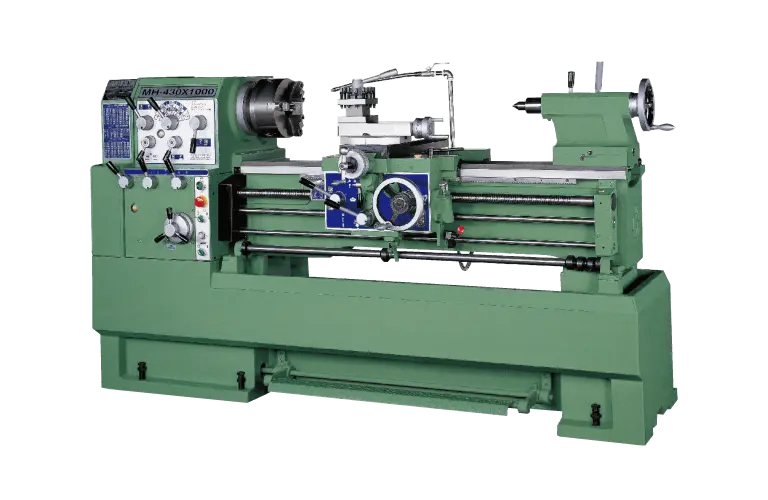

MODEL / ITEM MH 430x1000
Swing Over Bed 430 mm
Swing Over Cross Slide 240 mm
Swing Over Gap 650 mm
Distance Between Centers 1000 mm

Headstock
Spindle Bore Ø 58 mm
Type of Spindle Nose ASA-A1-6
Taper of Center MT No. 4
Number of Spindle Speeds 12 Changes
Range of Spindle Speeds 20-2000 RPM

Threading & Feeding
Lead Screw Range of Inch 35 mm x 4 T.P.I. or P 6 mm (opt.)
Threads Range of Inch Threads 4-56 TPI
Threads Range of Metric Threads 0.5 - 7 mm
Longitudinal Feeds 0.05 - 0.8 mm
Cross Feeds 0.02-0.58 mm

Carriage
Cross Slide Travel 250 mm
Compound Rest Travel 125 mm

Tailstock
Tail Stock Diameter of Spindle 58 mm
Tail Stock Spindle Travel 150 mm
Tail Stock Taper of Center MT No. # 4
Width of Bed 300 mm
Motor 5 HP (3.75 kw)
Weight (Approx) 1860 kgs
Packing Size (L x W x H) 228 x 95 x 162
