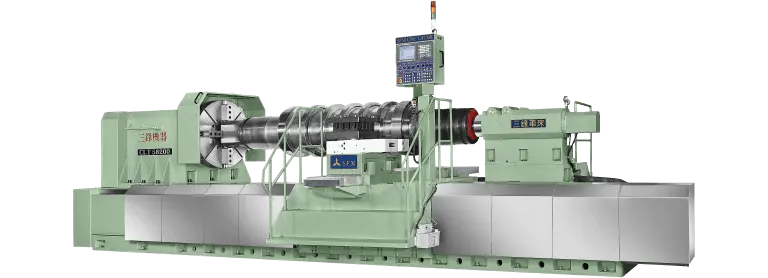

SFM CL 71 Multiple Guide Way Super Heavy Duty CNC Lathe

Capacity
Swing over bed 1800 mm (71")
Swing over cross slide 1500 mm (59")
Distance between center 6200 mm (248"), 7200 mm (288")

Headstock
Spindle nose A2-20
Spindle bore 153 mm (6")
Range of spindle speed 1- 300 rpm
No. of spindle speed 4

Carriage
Cross slide travel (X-axis) 770 mm (30")
Longitudinal travel (Z-axis) 6200 mm (248"), 7200 mm (288")
AC servo motor X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP)
Rapid feed X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm)
Cutting feed rate X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *V8 (Opt.)
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 60 mm (2.4")

Tailstock
Quill dia Ø 280 mm (11")
Quill stroke 300 mm (11.8")
Taper of center MT NO.7

Motor
Main spindle (continuous) AC 45 KW (60 HP)
Main spindle (30 min. rating) AC 55 KW (73 HP)
Hydraulic pump 3.75 KW (5 HP)
Coolant pump 0.75 KW (1 HP)

Bed
Width of bed 1525 mm (60")
Width of way 1835 mm (72")
Max Workpiece Loading 15-20 Tons

Control
Controller FANUC, FAGOR, SIEMENS
