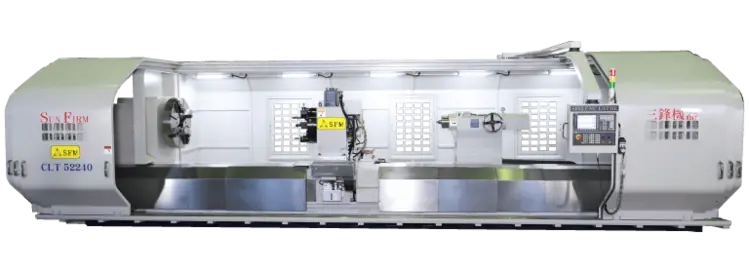

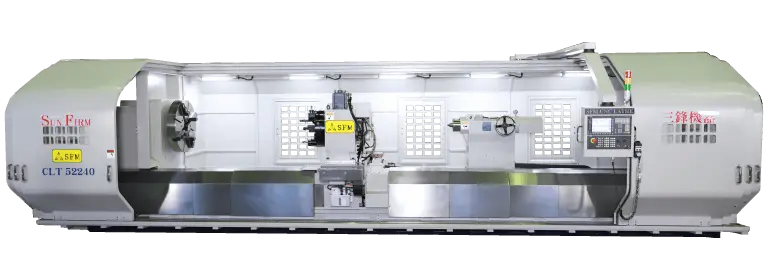

SMF CLT 58 Multiple Guide Way Heavy Duty CNC Lathe

Capacity
Swing over bed 1470 mm (58")
Swing over cross slide 1100 mm (43")
Distance between center 8200 mm, 9200 mm, 10200 mm

Headstock
Spindle nose A2-28
Spindle bore *406 mm (16")
Range of spindle speed 1-250 rpm
No. of spindle speed 2

Carriage
Cross slide travel (X-axis) 610 mm (24")
Longitudinal travel (Z-axis) 8200 mm, 9200 mm, 10200 mm
AC servo motor X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP)
Rapid feed X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm)
Cutting feed rate X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *V8 / *V12
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 60 mm (2.4")

Tailstock
Quill dia Ø 200 mm (7.9")
Quill stroke 250 mm (10")
Taper of center MT NO.6

Motor
Main spindle (continuous) AC 37 KW (50 HP)
Main spindle (30 min. rating) AC 45 KW (60 HP)
Hydraulic pump 3.75 KW (5 HP)
Coolant pump 0.75 KW (1 HP)

Bed
Width of bed 1120 mm (44")
Width of way 1280 mm (50")
Control

CNC control unit available FANUC, FAGOR, SIEMENS
