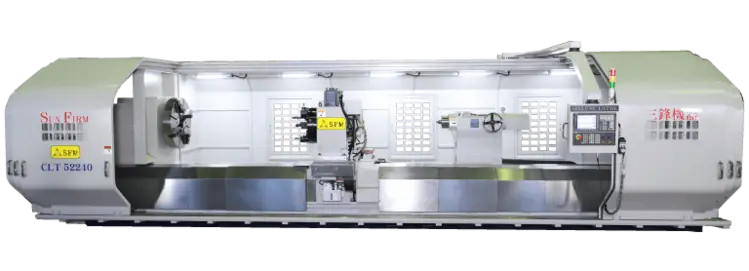

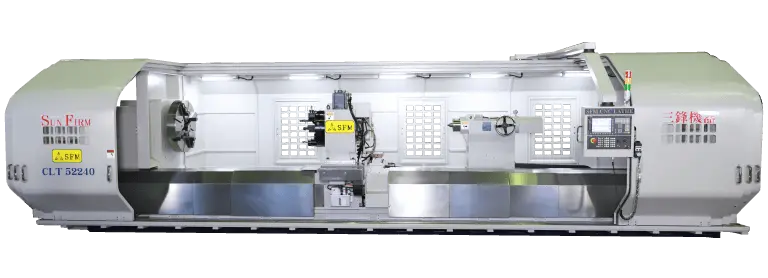

SMF CLT 52 Multiple Guide Way Heavy Duty CNC Lathe

Capacity
Swing over bed 1320 mm (52")
Swing over cross slide 940 mm (37")
Distance between center 5200 mm, 6200 mm, 7200 mm

Headstock
Spindle nose A2-20
Spindle bore *310 mm (12")
Range of spindle speed 1-400 rpm
No. of spindle speed 2

Carriage
Cross slide travel (X-axis) 610 mm (24")
Longitudinal travel (Z-axis) 5200 mm, 6200 mm, 7200 mm
AC servo motor X : 4 KW (5.4 HP) Z : 9 KW (12.1 HP)
Rapid feed X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm)
Cutting feed rate X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *V8 / *V12
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 60 mm (2.4")

Tailstock
Quill dia Ø 200 mm (7.9")
Quill stroke 250 mm (10")
Taper of center MT NO.6

Motor
Main spindle (continuous) AC 37 KW (50 HP)
Main spindle (30 min. rating) AC 45 KW (60 HP)
Hydraulic pump 3.75 KW (5 HP)
Coolant pump 0.75 KW (1 HP)

Bed
Width of bed 1120 mm (44")
Width of way 1280 mm (50")
Control

CNC control unit available FANUC, FAGOR, SIEMENS
