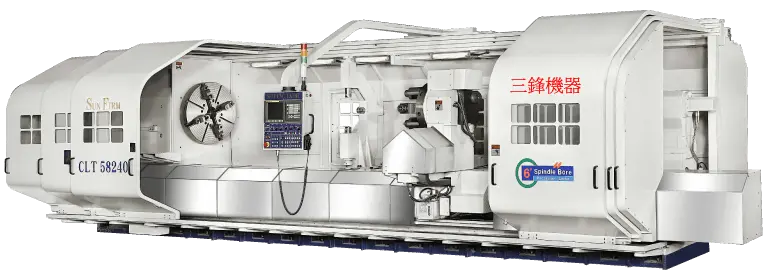

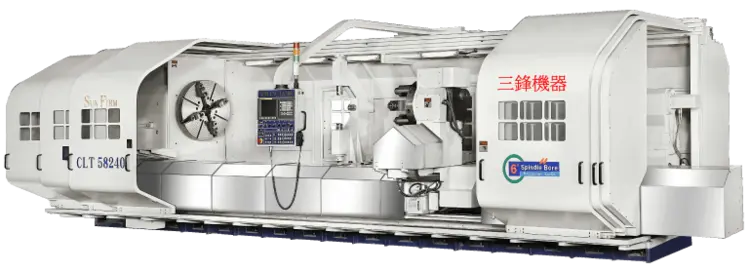

SFM CLT 46 Heavy Duty CNC Lathe

Capacity
Swing over bed 1170 mm (46")
Swing over cross slide 780 mm (31")
Distance between center 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm

Headstock
Spindle nose A2-15 / *A2-20
Spindle bore *406 mm (16")
Range of spindle speed 1-350 rpm
No. of spindle speed 4

Carriage
Cross slide travel (X-axis) 610 mm (24")
Longitudinal travel (Z-axis) 4200 mm , 5200 mm , 6200 mm , 7200 mm , 8200 mm , 9200 mm , 10200 mm , 11200 mm , 12200 mm , 13200 mm , 14200 mm , 15200 mm
AC servo motor X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP)
Rapid feed X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm)
Cutting feed rate X/ Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available V8 / *H4
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 60 mm (2.4")

Tailstock
Quill dia Ø 200 mm (7.9")
Quill stroke 250 mm (10")
Taper of center MT NO.6

Motor
Main spindle (continuous) AC 37 KW (50 HP)
Main spindle (30 min. rating) AC 45 KW (60 HP)
Hydraulic pump 3.75 KW (5 HP)
Coolant pump 0.75 KW (1 HP)

Bed
Width of bed 1120 mm (44")
Width of way 1280 mm (50")

Control
CNC control unit available FANUC, FAGOR, SIEMENS
