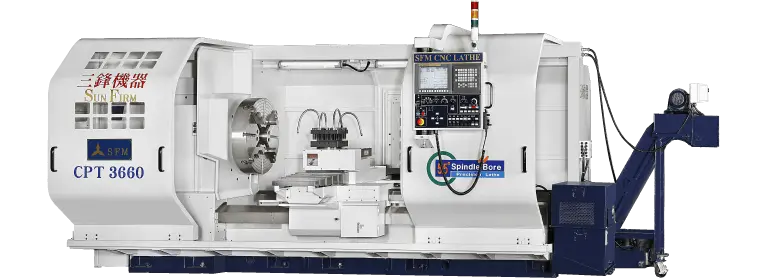

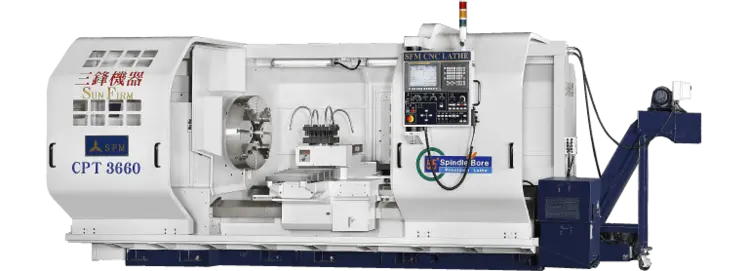

SFM CPT 40 Heavy Duty CNC Lathe

Capacity
Swing over bed 1000 mm (40")
Swing over cross slide 600 mm (23.6")
Swing over gap *1260 mm (50")
Width of gap *400 mm (16")
Distance between center 1000 mm , 1500 mm , 2000 mm , 3000 mm , 4000 mm, 5000 mm , 6000 mm

Headstock
Spindle nose A2-11 / *A2-15
Spindle bore 140 mm (5.5") / *230 mm (9")
Range of spindle speed 1-1000 rpm / *1-680 rpm
No. of spindle speed 4

Carriage
Cross slide travel (X-axis) 480 mm (19")
Longitudinal travel (Z-axis) 1300 mm, 1800 mm, 2300 mm, 3300 mm, 4300 mm, 5050 mm
AC servo motor X : 3 KW (4 HP) Z : 7 KW (9.4 HP)
Rapid feed X : 10 m/min (393 ipm) Z : 8 m/min (315 ipm)
Range of spindle speed x / z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *H6 , V8
Size of external turning 32x32 mm (1-1/4" x1-1/4")
Boring bar dia. Ø 50 mm (2")

Tailstock
Quill dia Ø 125 mm (5")
Quill stroke 250 mm (10")
Taper of center MT N0.6

Motor
Main spindle (continuous) AC 18.5 KW (25 HP)
Main spindle (30 min. rating) AC 22 KW (30 HP)
Hydraulic pump 1.5 KW (2 HP)
Coolant pump 0.375 KW (0.5 HP)

Bed
Width of bed 510 mm (20")
Control
CNC control unit available FANUC, FAGOR, SIEMENS
