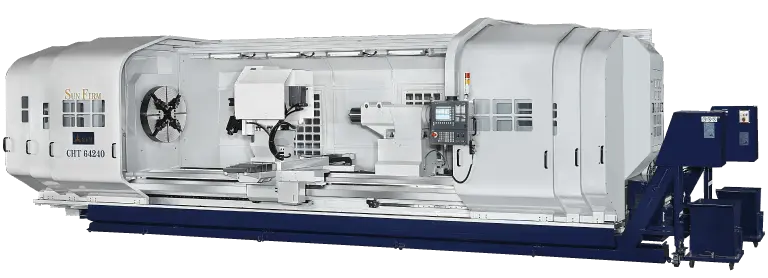

SFM CHT 56 Heavy Duty CNC Lathe

Capacity
Swing over bed 1420 mm (56")
Swing over cross slide 1000 mm (40")
Swing over gap *1700 mm (68")
Width of gap *610 mm (24")
Distance between center 1500 mm , 2000 mm , 3000 mm , 4000 mm , 5000 mm , 6000 mm , 7000 mm , 8000 mm

Headstock
Spindle nose A2-15 / *A2-20, A2-28, special
Spindle bore 153 mm (6"), *230 mm (9")
Range of spindle speed 1-500 rpm, 1-400 rpm
No. of spindle speed 4

Carriage
Cross slide travel (X-axis) 900 mm (35")
Longitudinal travel (Z-axis) 1800 mm , 2300 mm , 3300 mm , 4300 mm , 5050 mm , 6050 mm , 7050 mm , 8050 mm
AC servo motor X : 4 KW (5.4 HP) Z : 7 KW (9.4 HP)
Rapid feed. X: 6 m/min (236 ipm) Z: 6 m/min (236 ipm)
Cutting feed rate X / Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *H6 , V8
Size of external turning 32x32 mm (1-1/4"x1-1/4")
Boring bar dia. Ø 60 mm (2.3")

Tailstock
Quill dia Ø 200 mm (7.8")
Quill stroke 250 mm (10")
Taper of center MT NO.6

Motor
Main spindle (continuous) AC 30 KW (40 HP)
Main spindle (30 min. rating) AC 37 KW (50 HP)
Hydraulic pump 2.3 KW (3 HP)
Coolant pump 0.56 KW (0.75 HP)

Bed
Width of bed 850 mm (33")
Control
CNC control unit available FANUC, FAGOR, SIEMENS
