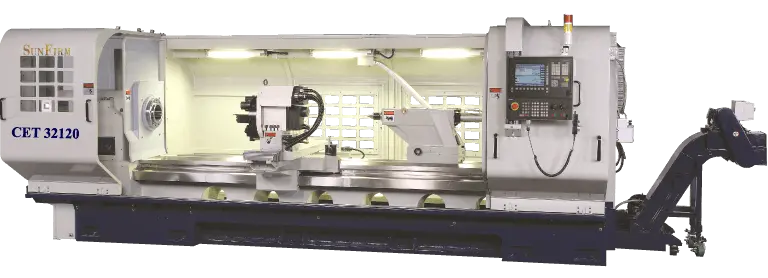

SFM CET 32 Heavy Duty CNC Lathe

Capacity
Swing over bed 830 mm (32")
Swing over cross slide 550 mm (21.6")
Distance between center 1000 mm, 1500 mm, 2000 mm, 3000 mm, 4000 mm

Headstock
Spindle nose A2-8 / *A2-11, A2-15
Spindle bore 105 mm (4") / *153 mm (6"), 230 mm (9")
Range of spindle speed 3-1200 rpm / *3-1000 rpm, 2-800 rpm
No. of spindle speed 2

Carriage
Cross slide travel (X-axis) 400 mm (16")
Longitudinal travel (Z-axis) 1000 mm, 1500 mm, 2000 mm, 3000 mm, 4000 mm
AC servo motor X : 3 KW (4 HP) Z : 4 KW (5.4 HP)
Rapid feed X : 10 m/min (393 inch/min.) Z : 8 m/min (315 inch/min.)
Cutting feed rate X / Z : 0.001-500 mm/rev (0.0004"-20"/rev)

Turret
Tool station (Random) available H4 / *H6 , V8
Size of external turning 25x25 mm (1"x1")
Boring bar dia. Ø 40 mm (1.57")

Tailstock
Quill dia 95 mm (3.74") / *105 mm (4")
Quill stroke 230 mm (9")
Taper of center MT NO.5 / *MT NO.6

Motor
Main spindle (continuous) AC 15 KW (20 HP)
Main spindle (30 min. rating) AC 18.5 KW (25 HP)
Hydraulic pump 1.5 KW (2 HP)
Coolant pump 0.375 KW (0.5 HP)

Bed
Width of bed 460 mm (18")
Control
CNC control unit available FANUC, FAGOR, SIEMENS
