FULLLAND GMTC-168
Have one to sell?
ConditionNew
New
Machine Structure Designed and Refined by FEM Analysis
The most important benefit provided by integrated mill turn centers is the
process integration.
a wide rance or machining vanatons can oe oeromeo, Iom ow malnallo
completion, with one setup, dramatically improving productivity.

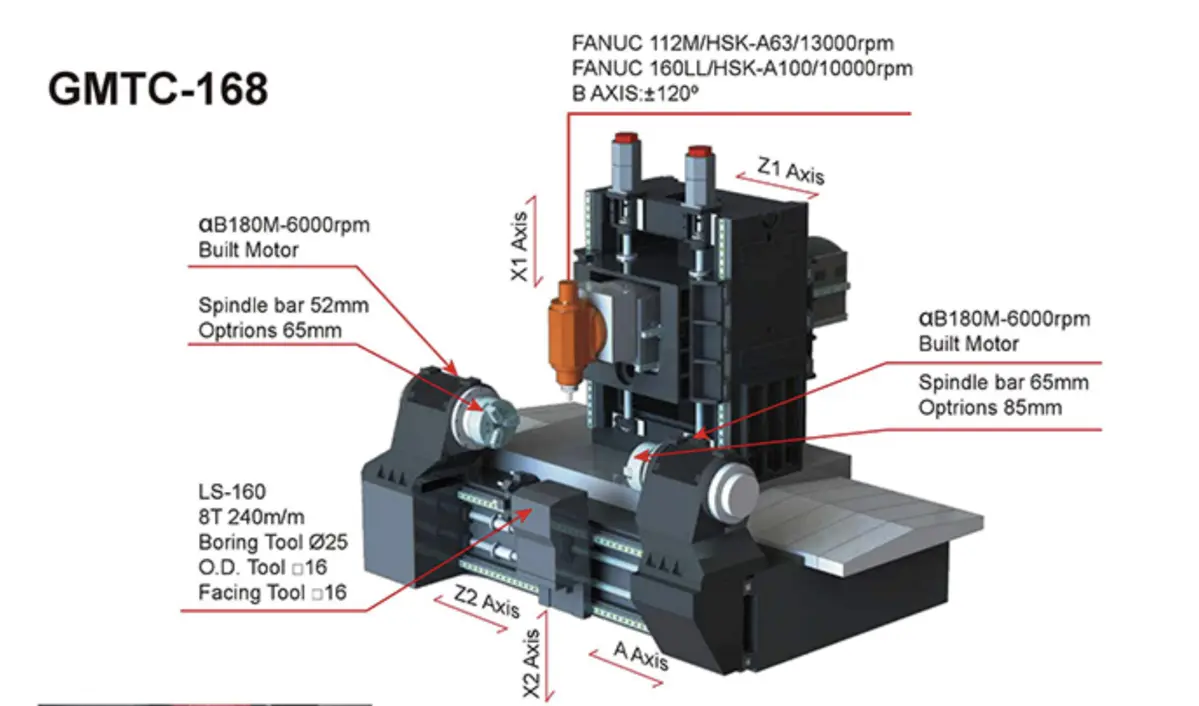

Travel
X1-axis 380 / 15 mm/(inch)
Y-axis 300 / 12 mm/(inch)
Z1-axis 1200 / 47 mm/(inch)
X2-axis 160 / 6 mm/(inch)
A&Z2-axis 700 / 28 mm/(inch)
Spindle nose to C-axis center 120~500
Ball Screw for X1, X2, Y,
Z2, A axes(dia/Pitch) 40 / 12 (dia/Pitch Z1)
Ball Screw 50 (12)
