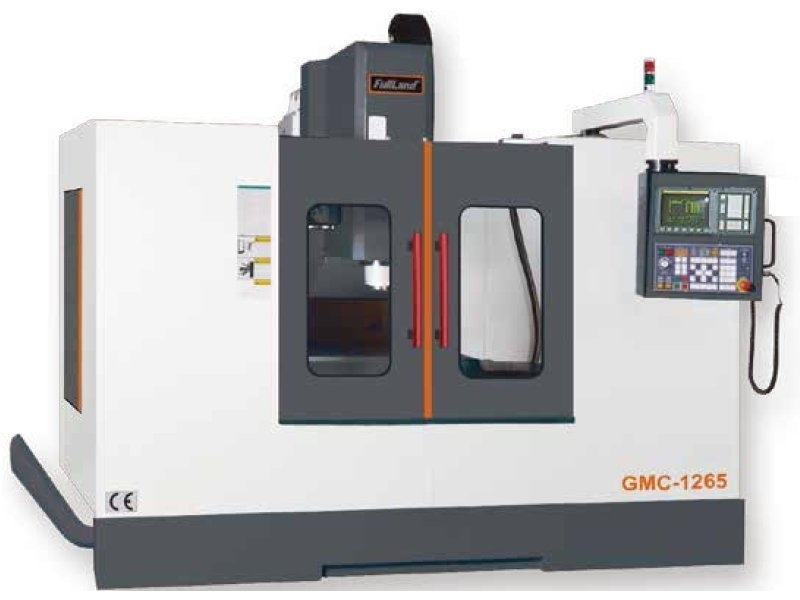

FULLLAND GMC-1265

TRAVEL 　 　
X-axis                          1200(47.2")         mm/(inch)
Y-axis                         650(25.6")         mm/(inch)
Z-axis                         650(25.6")         mm/(inch)
Spindle nose to table surface 100-710 (3.9"-27.9") mm/(inch)
Spindle center to column surface 740(29.1")         mm/(inch)
X.Y.Z. Axis Ball screws dia  40xpitch12         mm/(inch)
Table Size                  1260x600 (49.6"x23.6") mm/(inch)
Working Area                  1200x650 (47.2"x25.6") mm/(inch)
Tee slots (CD x W x NO)          CD 100x18x5         mm/(inch)
Table load (maximun)          1200(2640)         KG(Ibs)
