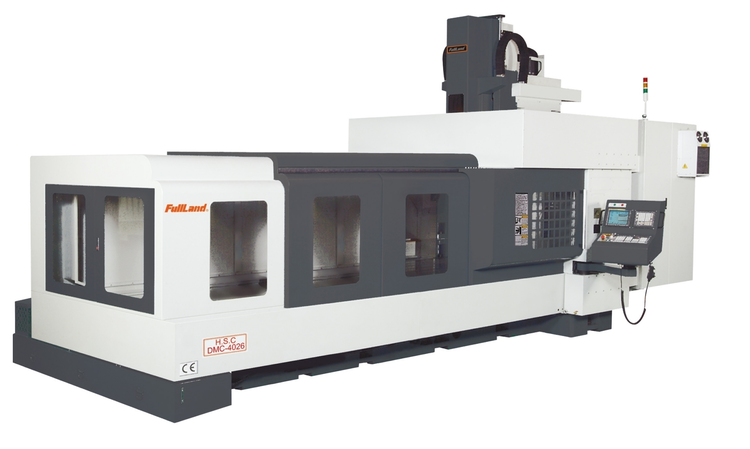

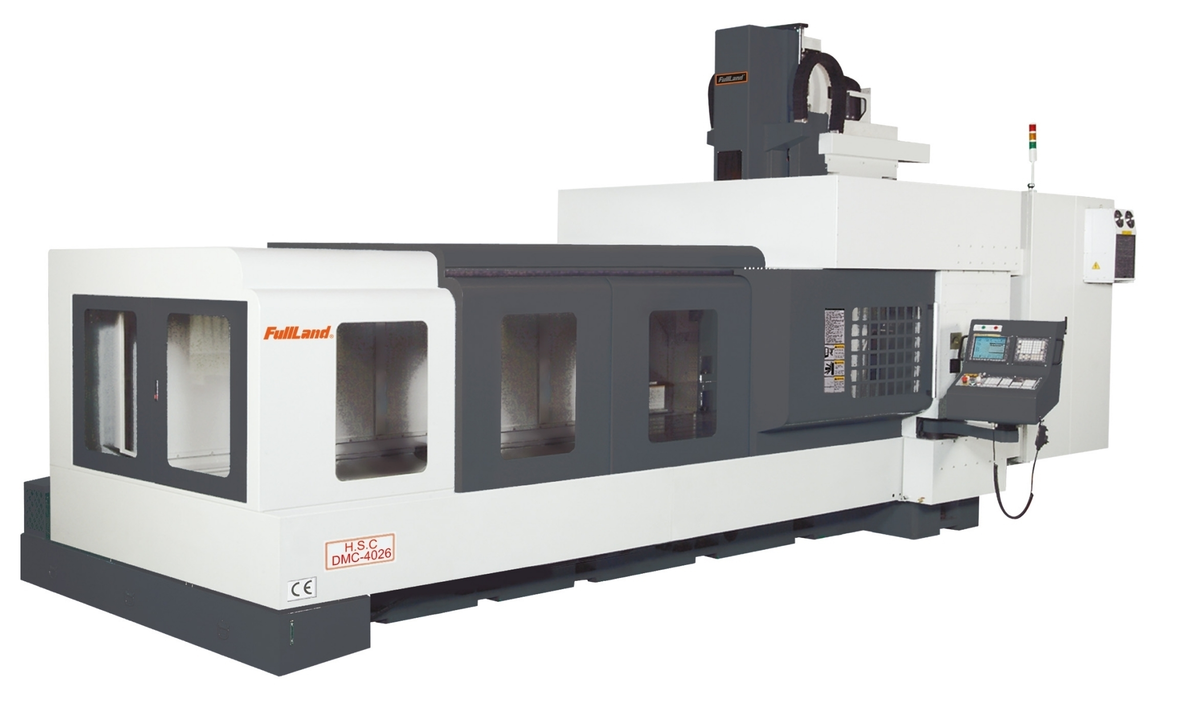

FULLLAND DMC-4026
Have one to sell?
ConditionNew
New
Optimum structure of GEOTECH DMC-SERIES is designed by an
excellent and experienced team of engineers. Using Finite Element
Scheme with ANSYS SOFTWARE to ensure rigidity of machines.
After the completion of assembling of whole machine, related
geometric and kinematics tests are via precise instruments
performed.
DMC-SERIES suit for 3-C products
(Consumer Electronics, Communications and Computers)
as well as complicated parts and moulds for injection, automobile
and aerospace industries.
Travel
X-axis 4000(157") mm/(inch)
Y-axis 2500(98.4") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Option 1100mm(43.3")
Z axis(O.P.) 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to
table surface 120~1120(4.7~44.1") mm/(inch)
Distance between
columns 2600/102.3 mm/(inch)
Table Dimension 4200 x 2150(165.3 x 84.6") mm/(inch)
Spindle speed
(Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor
(Built-in type) /
Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM
1. 3 axes with Linear Guide ways - roller type provide with overall rigidity.
2.Oil Cooling System for X.Y Axes Ballscrew.
3.Patent No. 202004017403.0 was granted by Germany and 1059432 was granted by Spain for improvements in Y-axis (saddle) with three pieces of linear guide ways. The machining rate is increased by 25%.
4.Z-axis (Head) with 4 pieces of Linear Guide ways enabling more stability while cutting.
5.Screw Chip Conveyor system on both sides of bed (X-axis), to help to remove chips out of the bed, avoiding thermal growth.
6.Patent No. 202004019862.2 and 202004019861.4 were granted by Germany for improvements on the radial ribbing design to absorb both the radial and axial forces to achieve rigid machine.
7.Patent No. 202004019861.4 were granted by Germany for improvements on pollution-preventive mechanism on the bed.
