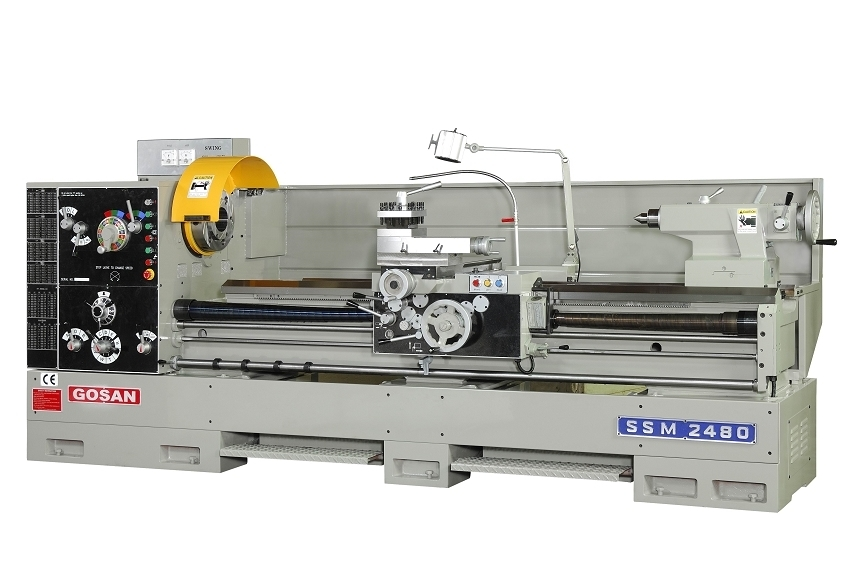

HEAVY DUTY LATHE (15HP Main motor; spindle bore105mm 4-1/8inch)
Have one to sell?
ConditionNew
New
MODEL 2480
NOMINAL SIZE
Swing over Bed 610mm 24in
Swing over Cross Slide 350mm 13-3/4in
Height of Center 305mm 12in
Distance Between Centers 2033mm 80in
BED
Width of Bedways 485mm 19in
Total Length of Bed 3320mm130in
Swing over Gap 820mm 32-1/4in
Length of gap 515mm 20-1/4in
Width in front of face plate 340mm 13-3/8in
SPINDLE
Spindle nose mounting D1-11 CAMLOCK
Spindle bore 105mm 4-1/8in
Taper of spindle bore M.T.#5 (with center sleeve)
Number of spindle speeds 18 steps (Forwarded & Reversed by magnetic clutch control)
Range of spindle speeds 10-1200 R.P.M. (with Magnetic brake)
TOOL SLIDE
Total travel of cross slide 375mm 14-3/4in
Total travel of top slide 225mm 9in
Max. size cutting tool 32mm 1-1/8in
TAIL STOCK
Total travel of tailstock barrel 195mm 6-5/8in
Taper in tailstock barrel M.T.#5
Diameter of barrel 80mm 3-1/8in
THREADS
Lead screw diameter & pitch Dia. 38mm Pitch 12mm 2 T.P.I.
Inch threads 1/4-84 TPI (60)
Metric pitches 0.2-112mm(60)
Diametral pitches 1-240 D.P.(55)
Module pitches 0.05-28 M.P.(55)
FEEDS
Feed rod diameter 38mm 1-1/2in
Range of longitudinal feeds 0.040-5.000mm/rev. 0.0015-0.20 in/rev.(40)
Range of cross feeds 0.015-4.000mm/rev. 0.0006-0.15 in/rev.
MOTOR
Main spindle motor 15HP 11kw
Coolant pump motor 1/8HP 0.1kw
WEIGHT
Machine net weight 3500kgs
FEATURES:
˙4-1/8in (105mm) Spindle bore; D1-11 camlock spindle nose; 3-bearing spindle support.
˙18 Spindle speeds, 10-1200 rpm, with electro-magnetic brake.
˙Electro-magnetic clutch mounted in Headstock, for spindle speed changed without stopping motor.
˙Automatic forced lubrication in headstock is moved by a direct motor drive lubrication gear pump, and oil tank is equipped in the leg of machine to minimize the cooling of oil.
˙Heavy duty geared head; hardened and ground gears.
˙15HP Main spindle motor.
˙Quick-change universal gearbox for inch, metric, DP, MP, threading, and multiple thread, all function without any change gears.
˙Four-way rapid carriage movement.
˙Automatic lubrication in saddle and apron assembly.
˙Adjustable overload clutch in apron to ensure proper cutting load.
˙2 speeds tailstock barrel.
˙19in. (485mm) wide bed ways, induction hardened and ground.
