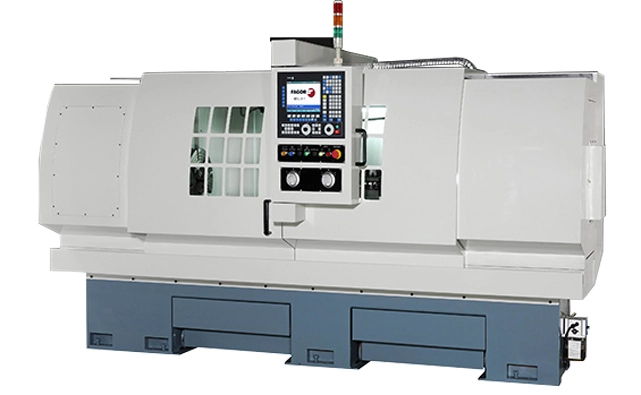

CNC LATHE (Flat-bed type) 17-20NC
Have one to sell?
ConditionNew
New
MODEL 1780NC
NOMINAL SIZE
Height of Center 220 mm 8-5/8 inch
Swing over Bed 440 mm 17-5/16 inch
Swing over Cross Slide 235 mm 9 –1/4 inch
Distance Between Centers 2000 mm 80 in
BED
Width of Bedways 330 mm 13 inch
Total Length of Bed 3020 mm 118 in
SPINDLE
Spindle nose mounting D1-8 CAMLOCK
Spindle bore 86 mm 3-3/8 inch
Taper of spindle bore M.T.#7 (Sleeve M.T.#5)
Range of spindle speeds High 2000~240 RPM - Middle 380~45 RPM - Low 84~10 RPM
Longitudinal travel (Z axis)(Ball screw 40㎜x10㎜ C5) 1940 mm 76-3/8 in
Longitudinal travel (Z axis) for Hydraulic 8 position turret 1890mm
Longitudinal travel (Z axis) for Hydraulic 8 position turret & 3 jaw chuck 10” 1770mm
Longitudinal travel (Z axis) for Electrical 4 way toolpost 1990mm
Longitudinal travel (Z axis) for Electrical 4 way toolpost & 3 jaw chuck 10” 1890mm
Cross slide travel (X axis)(Ball screw 25㎜x 5㎜ C5) 280 mm 11 inch
TOOL SLIDE
Total travel of cross slide 280 mm 11 inch
Max. size cutting tool 25 mm 1 inch
TAIL STOCK
Tailstock quill diameter 75 mm 3 inch
Tailstock quill Taper M.T.#5
Tailstock quill travel 160 mm 6-5/16 inch
MOTOR
Main spindle motor 10HP 7.4 kw
Machine weight 2300 kgs
FEATURES:
˙FAGOR, FANUC, SIEMENS, SYNTEC, LNC, CENTROID are available.
˙CNC and manual operation.
˙Dual electronic hand-wheels for manual turning.
˙Teach in mode.
˙Integrated PLC.
˙Semi-automatic, automatic (cycle) and part program modes.
˙Rapid traverse.
˙Automatic home searching.
˙3 steps, 10-2000 r.p.m. infinite variable spindle speed.
˙86mm. 3-3/8inch hole through spindles.
˙3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
˙All geared headstock, main gears are made from Chromium, Nickel, molybdenum alloy steel and are case hardened and “REISHAUER” ground.
˙Forced spray lubrication system used for headstock.
˙High precision ball-screws.
˙Hardened of bed-way & cross ways meet HB 450.
˙Auto lubrication unit for all slide-ways surface and ball-screws.
˙10HP (7.4kw) Main spindle motor
