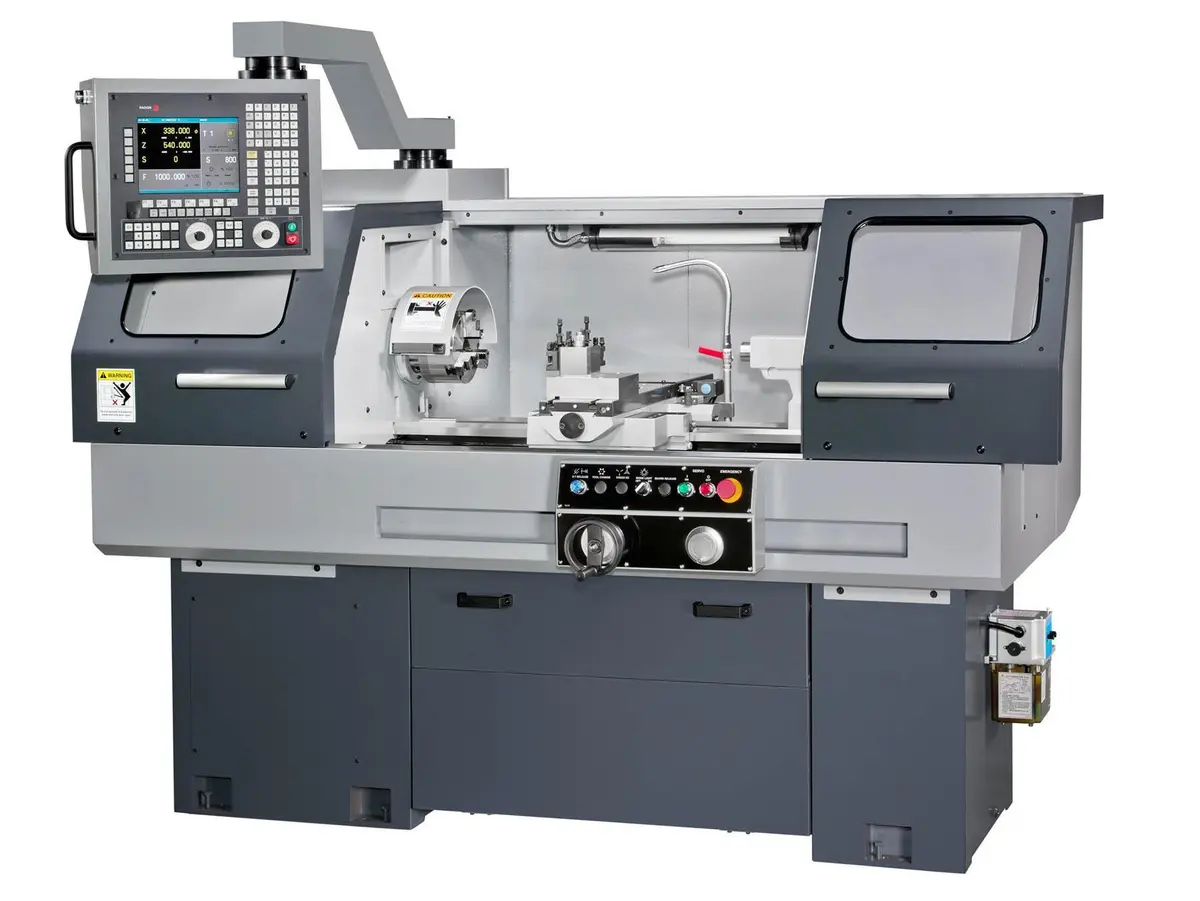

CNC LATHE (Flat-bed type) 14NC

<p><b>FEATURES:</b></p> <p>˙FANUC, FAGOR, SIEMENS, SYNTEC control are available.</p> <p>˙CNC and manual operation.</p> <p>˙Electronic hand-wheels for manual turning.</p> <p>˙Teach in mode.</p> <p>˙Integrated PLC.</p> <p>˙Semi-automatic, automatic (cycle) and part program modes.</p> <p>˙Rapid traverse.</p> <p>˙Automatic home searching.</p> <p>˙30-2000 R.P.M. infinite variable spindle speed.</p> <p>˙38mm. 1-1/2inch hole through spindles.</p> <p>˙2-point supported spindle using 2 precision taper roller bearings.</p> <p>˙All geared headstock, main gears are made from Chromium, Nickel, molybdenum alloy steel and are case hardened and “REISHAUER” ground.</p> <p>˙Forced spray lubrication system used for headstock.</p> <p>˙High precision ball-screws.</p> <p>˙Hardened of bed-way & cross ways meet HB 450.</p> <p>˙Auto lubrication unit for all slide-ways surface and ball-screws.</p> <p>˙5HP 3.5KW Main motor or 7.5HP 5.7kw main servo motor.</p> <p><u>HEADSTOCK</u></p> <p>˙The headstock is made of high quality cast iron (FC30) all shafts and gears are of high tensile tensil steel and are hardened and ground.</p> <p>˙3 spindle speeds 30-2000 rpm. Low speed provides High torque output for heavy duty cutting. Hi speed is for finish cutting.</p> <p>˙Hardened and ground main spindle is supported by precision taper roller bearing.</p> <p>˙Headstock have inner oil reservoir in which lubrication worked by splashing lubricant.</p> <p><u>BED WAY</u></p> <p>˙Meehanite cast iron bed is heavily ribbed.</p> <p>˙The bed ways are induction hardened to HS70 and precision ground.</p> <p><u>CARRIAGE</u></p> <p>˙Automatic lubrication system continuously supplies lubricating oil to carriage and cross-slide.</p> <p><u>TAILSTOCK</u></p> <p>˙Tailstock is of rigid construction and features super tight clamp locked by clamp lever.</p> <p>˙M.T. #3 barrel internal taper provides heavy support for live centers or tip center.</p> <p>˙The quill is hardened and ground with inches and metric graduations.</p>
