GSA SC-12 SC-16
Have one to sell?
ConditionNew
New
Chuck / Hydraulic Cylinder / Tailstock with Rotary Table Application
SUITABLE ROTARY TABLE CNC-630R
Manual Scroll chuck
Model NO. SC-12 SC-16
Size 12" 16"
Hydraulic chuck (Non Through hole)
Model NO. V-215 V-218
Size 15" 18"
Rotary Hydraulic cylinder
Model NO. MH200
Tailstock Type
Manual TS-C400
Pneumatic TS-C400P
Hydraulic TS-C400H
Strong(P/H) TSA-320S
SUITABLE ROTARY TABLE CNC-800R
Manual Scroll chuck
Model NO. SC-12 SC-16
Size 12" 16"
Hydraulic chuck (Non Through hole)
Model NO. V-215 V-218
Size 15" 18"
Rotary Hydraulic cylinder
Model NO. MH200
Tailstock Type
Manual TS-C480
Pneumatic TS-C480P
Hydraulic TS-C480H
Strong(P/H) TSA-320S

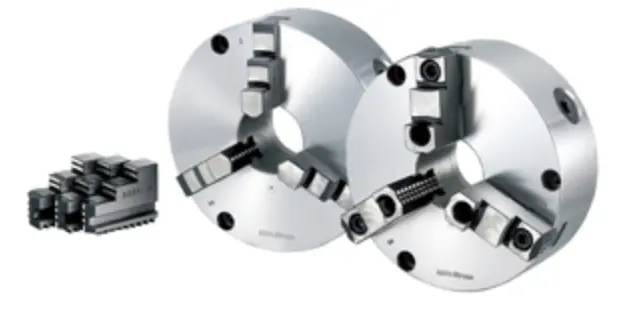

- SC series is 3-jaw scroll chuck and internal and external jaws can be used interchangeably.
- SIC series is 4-jaw scroll. Gripping of square or octagonal workpieces could fit into central line automatically. SIC series has high stability in gripping thin tube workpieces.
- SK series is 3-jaw strong scroll chuck. The hard jaws are suitable for heavy cutting and soft jaws suitable for light and precision cutting.
- The hard jaws cowd be used as internal and external jaws.
- SIK series is 4-jaw strong scroll chuck. The hard jaws are adopted for square or octagonal thin tube workpieces machining.
- The soft jaws could grip rectangular workpiece after being unisotropic machined.
