GSA GCT-1200
Have one to sell?
ConditionNew
New

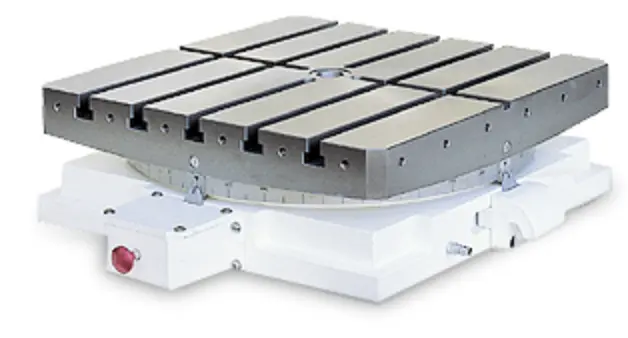

Precision Index Table
Suitable for the high accuracy machining such as Boring-Milling, Grindding-Machine.
Build-in 2 pieces hirth coupling for positioning, indexing accuracy +/- 3 sec, ensure a long-term operation.
Powerful clamping design, allow heavy cutting and boring.
Clamping / Unclamping by pneumatic, easy operation.
The body is FC-35 cast iron, durable and will last longer without deformation.
Table size L x W (mm) 1200X1200
Height (mm) 340
Spindle hole (mm) ø80
T-slot (mm) 22
Table rotating clockwise and counterclockwise
Table Lifting up &
Clamp down stroke (mm) 8
Driving Longitudinal Air Pressure 5~8 kg/cm2
Revolving Manual
Number of division (degree)
(evenly distributed) 1° or 5°
Max. load weight in theory (kgs) 7000
Allowable load weight (kgs) 6000
Clamping capacity (kgs) 8100
N.W. (kgs) 2000
