GSA HIT-800
Have one to sell?
ConditionNew
New

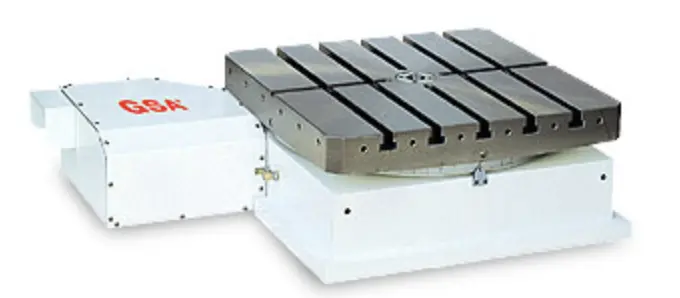

Horizontal Rotarv/Index Center Table
Suitable for Horizontal Machining Center.
Rotating Speed can be reached 33.3 RPM.
Adapting A special anti-wearing/rigid alloy of bronze/nickel worm wheel and hardened steel worm screw ensure long term indexing accuracy.
Double powerful brake system with large size of clamping contact surface suitable for heavy cutting.
Adapting 2 pcs or 3 pcs Hirth Coupling for positioning, Repeatability can be reached +/- 0.5 sec Besides accuracy will not be changed even operation times increasing.
Indexing Accuracy according to customer’s requirement: +/- 2 sec. or +/- 3 sec.
All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 hours.
All electrical parts are imported from Japan/Germany for performance confidence.
Table Size L x W (mm) 400 x 400
Over all height (mm) 310
Center Hole Dia. (mm) 30H7
T-slot size (mm) 14H7
Rotating direction CW / CCW
Power of drive Clamping/unclamping Hydraulic 20kg/cm2
Revolving (Servo Motor Type)
MELDAS HF-204S
FANUS α12 i
SIEMENS 1FK7083
HEIDENHAIN QSY155C
or other brand with same torque as above
Gear Ratio 1:90
Max. R.P.M. of working table (rpm) 22.2 (Motor : 2000/rpm)
Min. Increment Degree 1° or 5°
Max. loading weight (kgs) 500
Clamping force (kg)(evenly distributed) 3300
Lifting distance during clamp/
unclamp (mm) 0
Weight.(kgs) 325
Indexing Accuracy (sec.) ±5"
