GSA NCF-500R
Have one to sell?
ConditionNew
New

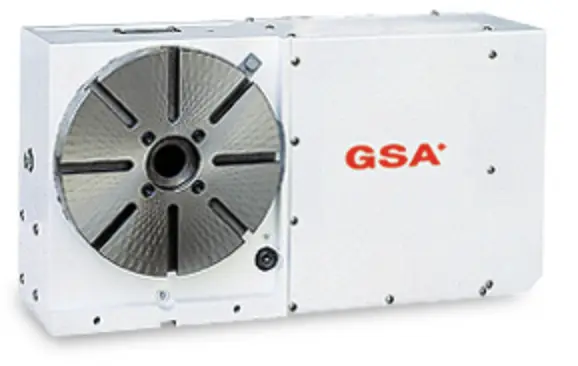

NC Face Gear Indexer
Build-in 3pcs hirtn coupling, ensure the indexing accuracy +/- 5 sec.
Could be direct connected to the 4th. axis on machining-center.
Also could be connected the M-code by using G.S. single axis
AC/DC/Stepping servo controller.
Compact design, adapting precision bearing, ensure rigidity and long-term operation.
Build-in 3 pieces hirth coupling, table will not lifting-up during rotating.
Table Dia (mm / inch) ø500 / ø19.69
Center Height in Vertical (mm / inch) 310 / 12.21
Table Height in Horizontal (mm / inch) 305 / 12.01
Over all Height in Vertical
Without Motor Cover(mm / inch) 560 / 22.05
Thru-Hole Dia (mm / inch) 80H7/ 3.15H7
Width of T-slot (mm / inch) 14H7/ 0.55H7
Width of Guide Block (mm / inch) 18h7/ 0.71h7
Servo Motor type
MELDAS HF-204S
FANUC α12 i
SIEMENS 1FK7083
HEIDENHAIN QSY155F
Gear Ratio 1:180
Min. increment (degree) 1° or 5°
Max. R.P.M. (rpm)
(motor : 2000/ rpm) 11.1
Repeatability (sec.)
Unidirectional 1"
Bidirectional 2"
N.W.(kgs) 320
Clamp Torque (kg•m) 700
Load capacity in vertical
(with tailstock) (kgs) 600
