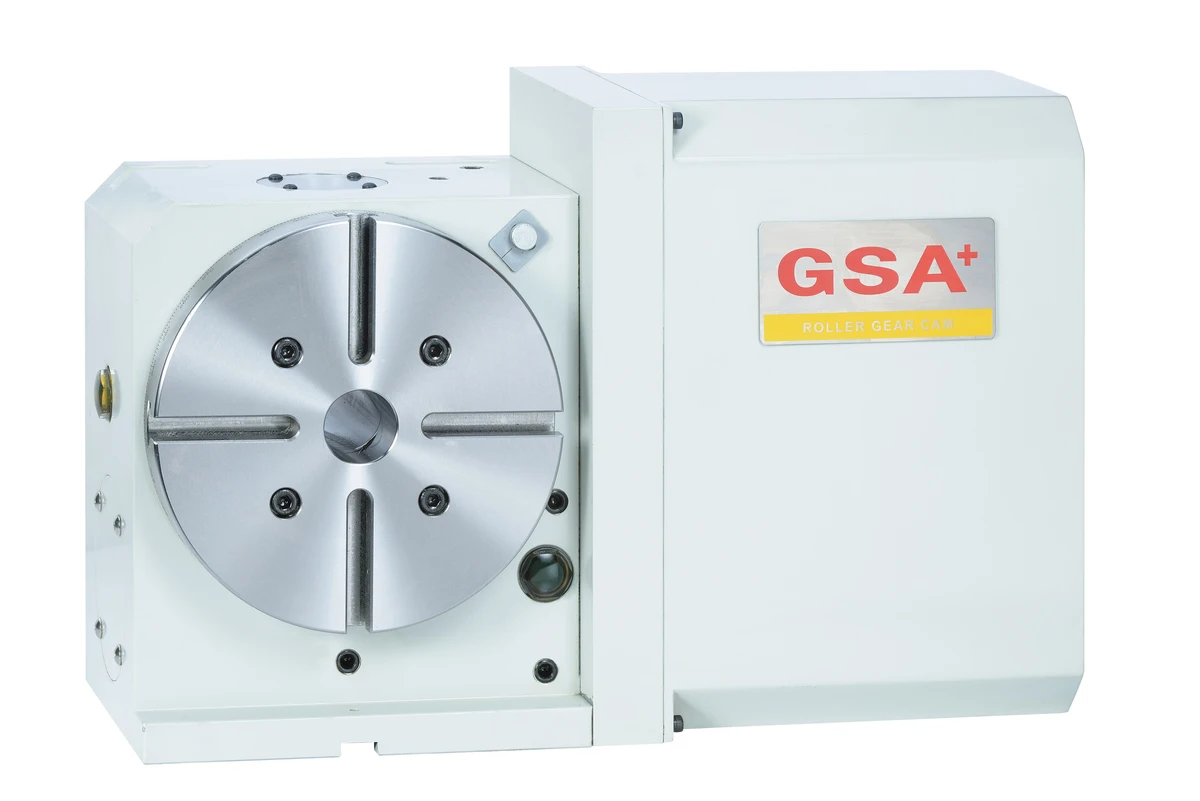

GSA RCT-350R

Table Dia (mm/inch)         320
Center Height in Vertical (mm / inch) 210
Table Height in Horizontal (mm / inch) 250
Over all Height in Vertical
Without Motor Cover (mm / inch) 380
Thru-Hole Dia (mm / inch) 145H7 /80
Width of T-slot (mm / inch) 14H7
Width of Guide Block (mm / inch) 18h7
Servo motor type
        MELDAS                         HF-154T
FANUC                         α8 i / 3000
SIEMENS                         1FK7063
HEIDENHAIN                 QSY116E
Gear Ratio                 1:60
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 33.3
Pneu. clamp force (kg•m) (P:5kg / cm2) 71
Hydro. clamp force (kg•m) (P:20kg / cm2)142
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.)         4"
Max. Machining Force (kg•m) 80
N.W. (kgs)                 200
Max. Load
        Vertical                 W=150 kg
Horizontal                 W=350 kg

Max. Radial Load
                                        F=2000 kg
                        FxL=260 kg•m
                        FxL=200 kg•m
