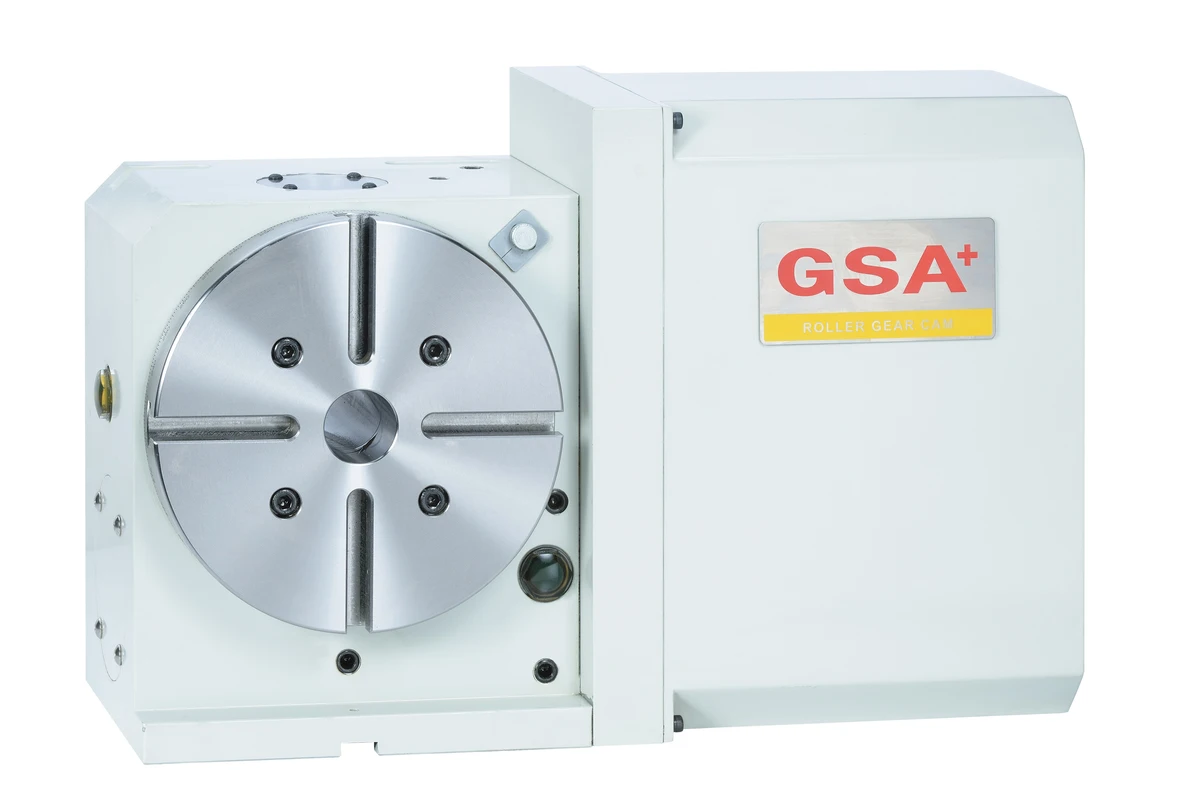

GSA RCT-200R

Table Dia (mm/inch)         200
Center Height in Vertical (mm / inch) 160
Table Height in Horizontal (mm / inch) 189
Over all Height in Vertical
Without Motor Cover (mm / inch) 265
Thru-Hole Dia (mm / inch) 35H7 /35
Width of T-slot (mm / inch) 12H7
Width of Guide Block (mm / inch)        18h7
Servo motor type
        MELDAS                         HF-104T
FANUC                         α4 i / 4000
SIEMENS                         1FK7060
HEIDENHAIN                 QSY116C
Gear Ratio                 1:40
Min. Indexing Unit degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 50
Pneu. clamp force (kg•m) (P:5kg / cm2) 25
Hydro. clamp force (kg•m) (P:20kg / cm2)50
Indexing Accuracy Class (sec.) 20"
Repeatability (sec.)         4"
Max. Machining Force (kg•m) 25
N.W. (kgs)                 80
Max. Load
        Vertical                 W=75 kg
Horizontal                 W=150 kg

Max. Radial Load
                                        F=800 kg
                        FxL=45 kg•m
                        FxL=40 kg•m
