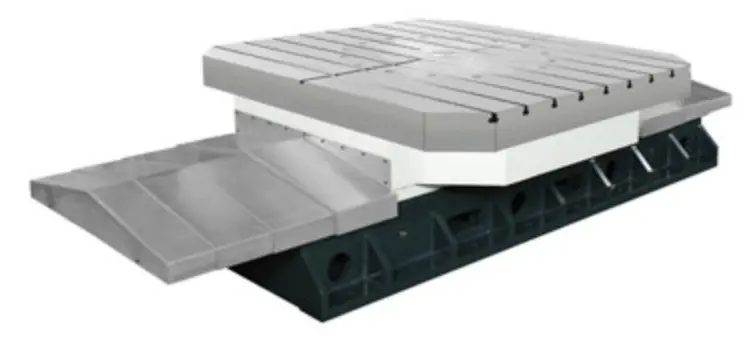

GSA RLT-2000
Have one to sell?
ConditionNew
New
Suitable for floor type boring machine, both indexing & simultaneous machine.
Hi-Accuracy, Adapting a special anti-wearing alloy of bronze/nickel double-lead worm wheel and hardened steel worm shaft ensure long term indexing accuracy.
All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 hours. All electrical parts are imported from Japan/Germany for performance confidence.
Random dividing 0.001 degrees, Indexing Accuracy according to customers requirement 5 sec, 10sec. or higher indexing accuracy. (encoder is required)
3 face large roller bearing design with excellent price-performance and low maintenance.
Max. load in tons 20
Table sizes (mm) 2000X2000
Bearing diameter (outside/mm) 1600
Max. rpm R/T 4.16
Tilting moment (Nm) 282.240
Tangential moment, clamped (Nm) 43.900
Machining moment (Nm) (S1/S6) 23.462
W1 axis Stroke (mm) 1500
Linear axis feed rate (m/min) 20
Feeding force linear axis (N) 25.000
No. of guide rails 2
Parallelism
between bottom and top surface 0.0025
Concentricity at center (mm) 0.01
