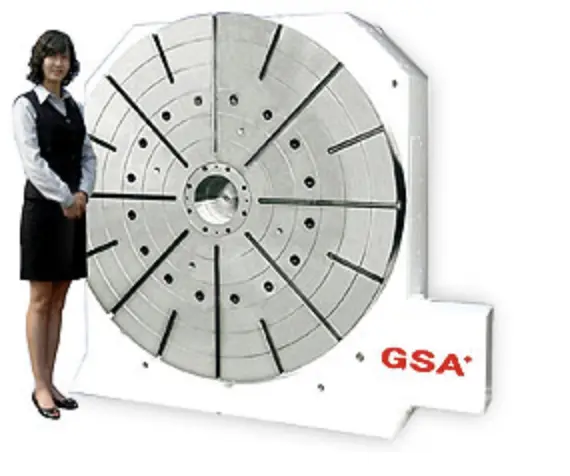

GSA CNC-2000HV
Have one to sell?
ConditionNew
New
Table size form size 1,000mm to size 2,000mm can be manufactured in both Vertical/Horizontal position. With high accuracy and high loading capacity which are suitable for heavy machining and metrology applications.
High Heavy loading capacity axial-radial Roller Bearings are incorporated to provide high rigidity.
All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 performance confidence.
Can be designed by customers' drawings Saddle.
0.001 degree increment is standard. Indexing accuracy can be chosen by customers' request. 5 sec. or 10 sec. (encoder is required.)
Table Dia (mm) 2000
Center Height in Vertical (mm) 1100
Table Height in Horizontal (mm) 800
Over all Height in Vertical
Without Motor Cover (mm) 2145
Center Holes (mm) 200x70
Width of T-slot (mm) 28H7
Width of Guide Block (mm) 36h7
Servo motor type
MELDAS HF-703S
FANUC α40 i
SIEMENS 1FK7105
HEIDENHAIN QSY190K
Gear Ratio 1:720
Min. Indexing (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 / rpm) 2.78
Hydro. clamp force (kg•m) (P:35kg / cm2) 2000
Indexing Accuracy Class (sec.) A 15"
Indexing Accuracy (sec.)
Encoder ±5"
Repeatability (sec.)
Encoder 4"
Max. Machining Force (kg•m) 700
N.W. (kgs) 8000
Max. Load
Vertical W=4000 kg
Horizontal W=10000 kg
Max. Radial Load
F=8000 kg
FxL=2000 kg•m
FxL=3500 kg•m
